Samsung RS25J500DSR LED Light Replacement

Geschrieben von: Kimberlyne Barrios
  • Kommentare: 0
Samsung RS25J500DSR LED Light Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 Minuten

Einleitung

If your LED light strip on a Samsung Side By Side Refrigerator (model: RS25J500DSR) is not working, this guide will help you and lead you through your troubles. The LED light strip is an electric light for use in light fixtures. Inspect the connection connected to the LED light. Before starting, make sure to disconnect the refrigerator from the electrical outlet box. This guide provides easy and straightforward steps in changing the light on the fridge.

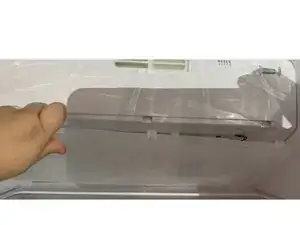

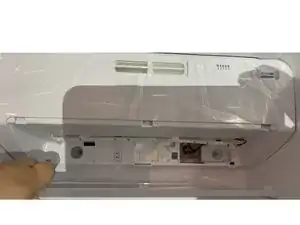

  1. t6gSNULXc5CAc5pi
    t6gSNULXc5CAc5pi
    VNxrtBtDyv5TTDne
    ahDfHmaBAbavK1cF

    • Disconnect the refrigerator for the electrical outlet box.

    • Remove the cover that protects the LED light.

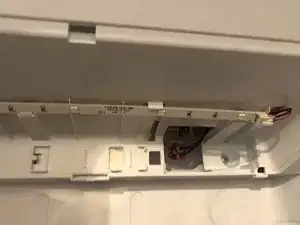

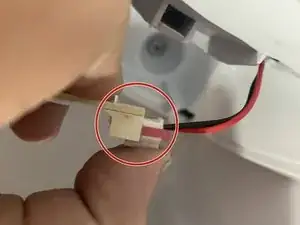

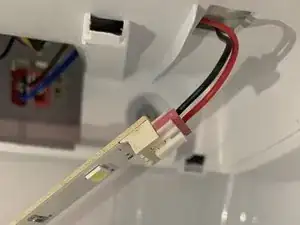

  2. XKjwYJIVE4wDRVHu
    XKjwYJIVE4wDRVHu
    6PQe3f4viSOxaZt1
    v5SnQfaDqmq4k346

    • Disconnect the damaged light from the connection.

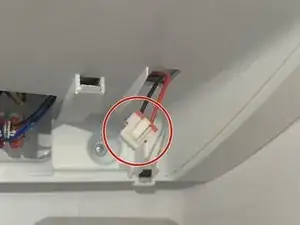

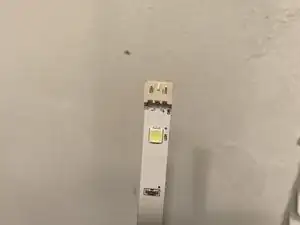

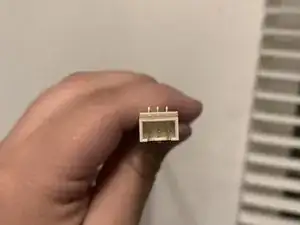

  3. pLvEKA13oXMepGc4
    pLvEKA13oXMepGc4
    MxHmKASsnkmkBptH
    vWubL6MdeIo5UYoY

    • Remove the damaged LED light to insert the new one on the connection.

    • Be careful not to damage the clip from the connection when removing the LED light.

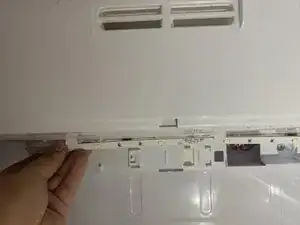

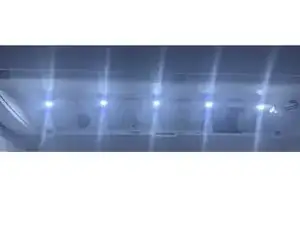

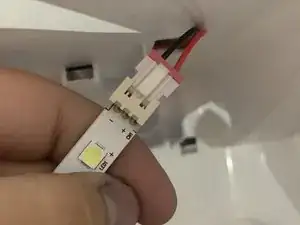

  4. 5LMl4SVS4H6yCmjk
    5LMl4SVS4H6yCmjk
    sOqBxy3hvbAOyq1c
    Um2NExU3EEWWstBg

    • To connect the new LED light, clip it onto the connector.

    • After connecting the new LED strip reconnect the refrigerator to see if the light is working.

Abschluss

To reassemble your device, follow these instructions in reverse order.
