Einleitung

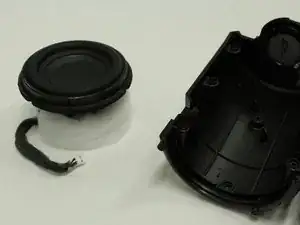

The woofer speaker is responsible for all the deep bass sounds in your speaker, and if you hear any weird rattling or pinging noises there is a good chance your woofer speaker will need to be replaced. This guide will demonstrate how to replace the woofer speaker in the Samsung Radiant 360 R1.
Werkzeuge
-
-

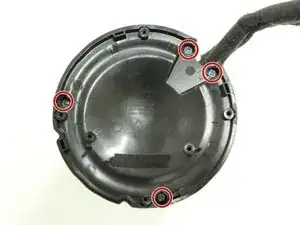

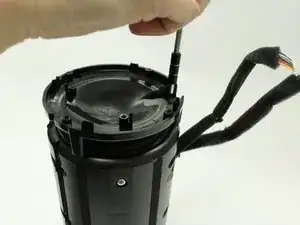

Using a PH1 Philips screwdriver, remove four (9.5mm x 1.6mm) screws from the base plate.
-
Remove base plate by stabilizing speaker and using plastic prying tool to pry the base plate from the speaker.
-
-
-
Place the speaker on the table with the Touch Pad facing down. This will leave you with the Port Panel exposed.
-

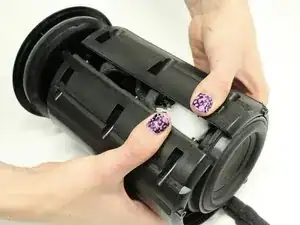

Remove speaker grill by stabilizing speaker on a table and applying pressure to the bottom of the speaker. Slide the speaker grill up and away from the remaining endcap.
-
-
-
Remove the two exposed (9.5mm x 1.6mm) PH1 Phillips screws on the Port Panel.
-
Remove the Port Panel from the speaker body, exposing the ribbon cables.
-
-
-

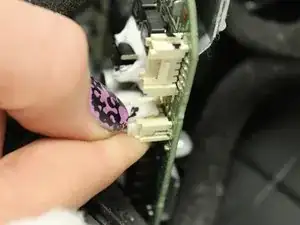

While stabilizing the Port Panel remove the two ribbon cables one at a time by pressing the locking clip down on the ribbon cable connectors and pulling the connector away from the Port Panel.
-
-
-

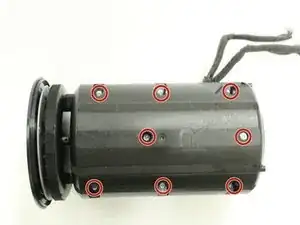

Remove the eight (9.5mm x 1.66mm) PH1 Phillips screws on the right side of the speaker body.
-

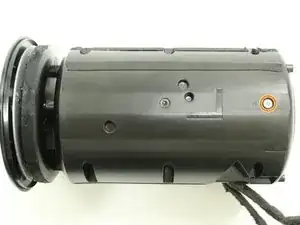

Remove the one (9.5mm x 1.66mm) PH1 Phillips head screws on the left side of the speaker body.
-
-
-
Remove the four (9.5mm x 1.66mm) PH1 Phillips screws on the port speaker body.
-

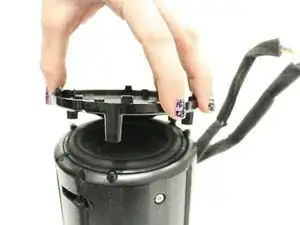

Remove the Port Panel exposing the subwoofer.
-
-
-
Remove the ribbon cable from the subwoofer which is attached to the main motherboard.
-

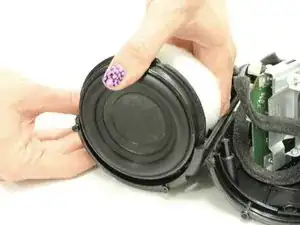

Slide the subwoofer out of the enclosure.
-
To reassemble your device, follow these instructions in reverse order.
