Samsung Radiant 360 R1 Motherboard Replacement

Geschrieben von: Aaron Bristow
  • Kommentare: 2
Samsung Radiant 360 R1 Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

16

Zeitaufwand

25 Minuten

Einleitung

The motherboard is the "brains" in this speaker, and may need to be replaced if other components may appear to be faulty. They may actually not be faulty at all, the communication between components may be inhibited by a compromised motherboard. Damage like this is likely if the speaker was exposed to water damage. This guide will demonstrate the removal of the motherboard from the mounting frame.

  1. qFj6A6DOJjkmwn4g

    • Working on your device while it is turned on may result in electric shock. Make sure to shut down and unplug your device before you begin.

    • Use the plastic opening tool to lift and remove the rubber grommet plugs.

  2. pJ21wxngg13RTVPU

    • Using a PH1 Philips screwdriver, remove four (9.5mm x 1.6mm) screws from the base plate.

    • Remove base plate by stabilizing speaker and using plastic prying tool to pry the base plate from the speaker.

  3. Zbs1l32MBXQsce4v

    • Place the speaker on the table with the Touch Pad facing down. This will leave you with the Port Panel exposed.

    • Remove speaker grill by stabilizing speaker on a table and applying pressure to the bottom of the speaker. Slide the speaker grill up and away from the remaining endcap.

  4. mb5SXhoEUDmuW2qO

    • Remove the two exposed (9.5mm x 1.6mm) PH1 Phillips screws on the Port Panel.

    • Remove the Port Panel from the speaker body, exposing the ribbon cables.

  5. TDdcMom4Duo5aTAE

    • While stabilizing the Port Panel remove the two ribbon cables one at a time by pressing the locking clip down on the ribbon cable connectors and pulling the connector away from the Port Panel.

    I understand this is a guide for working on the Samsung wam 1500 yourself. But where can you get the parts from. I can not find them online. I need to replace the usb/power port panel

    Brian Vickers -

  6. OfNRnIwqrxTIamBg
    OfNRnIwqrxTIamBg
    j6sx4MU1QdHqB1Vs
    NYLtqPYOsgK3RaCe

    • Remove the four (9.5mm x 1.6mm) PH1 Phillips screws on the port speaker body.

    • Remove the Port Panel exposing the subwoofer.

  7. FDVkLv4f6NHamQZo
    FDVkLv4f6NHamQZo
    FDYKClpCfaWQR1QK
    NjiqehJNBjQI6sao

    • Remove the eight (9.5mm x 1.6mm) PH1 Phillips screws on the right side of the speaker body.

    • Remove the one (9.5mm x 1.6mm) PH1 Phillips screw on the left side of the speaker body.

    • The body sides are denoted with a "R" and an "L" for right and left sides.

  8. 5HGjoLHovcoaZ4Eo

    • Open up the body to expose the inner panel and motherboard.

  9. C1DJUMybxBCCwgVV
    C1DJUMybxBCCwgVV
    yqNJJbCpPNuknafI
    m3JlOBBYIms2bxxk

    • Remove the ribbon cable from the tweeter which is attached to the main motherboard.

    • Slide the tweeter out of the enclosure.

  10. J3sQssZcJORXnasx

    • Slide rubber grommet out of slot on plastic housing.

    • This may have occurred naturally when separating the two halves.

  11. rwNmIKB5YckMoFQD
    rwNmIKB5YckMoFQD
    hJVIKNM5jJgZX6yA
    qohRif22EYbwYBwO

    • Disconnect white connector by pushing down on the release tab while gently pulling the connector free from the socket.

    • Remove wiring harness and set aside.

    • The other connectors in the wiring harness should already be free from previous steps.

  12. WtvYmpl1CwvZF5PD
    WtvYmpl1CwvZF5PD
    yOF5R2wSefJBbMJG

    • Locate and remove the two PH2 Phillips screws from the base of the motherboard assembly.

    • These screws may be extremely tight. Be careful not to snap the plastic when removing the screws.

  13. lOCkOjwBAT2b6Vu1
    lOCkOjwBAT2b6Vu1
    jZsogLYWnyiydFed

    • Flip the motherboard assembly over and locate the Bluetooth module on the side of the metal frame.

    • Remove the one PH2 Philips screw.

  14. 1gkPiNNsNFW5eFQy

    • Press the white tab while gently pulling the Bluetooth module away from the connector and frame.

  15. AsuLDEJrYHG3EnTw
    AsuLDEJrYHG3EnTw
    lOIYS6Wvik6rkCGS
    IykfSPKafndRLGkX

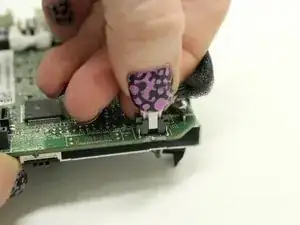

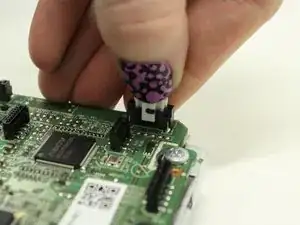

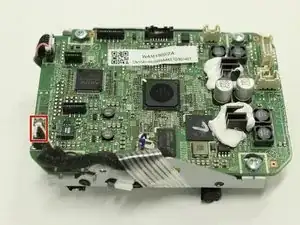

    • Pinch the release tab on the remaining small white connector to disconnect the final wiring harness from the motherboard.

  16. oBO5IC4RnamvdueP
    oBO5IC4RnamvdueP
    sqHuCwdGaRTGkniA

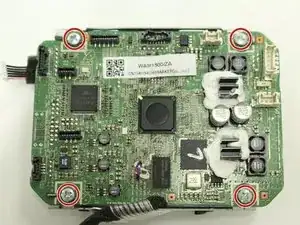

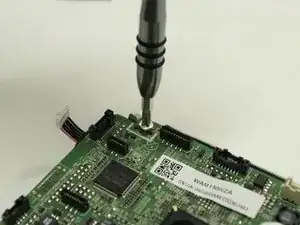

    • Remove the four PH2 Phillips screws holding the motherboard to the mounting frame.

    • Carefully separate the motherboard from the metal frame.

Abschluss

To reassemble your device, follow these instructions in reverse order.
