Samsung Radiant 360 R1 Touch Control Panel Replacement

Geschrieben von: Kim
  • Kommentare: 1
Samsung Radiant 360 R1 Touch Control Panel Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

25 Minuten

Einleitung

The touch panel is where you control the settings on your speaker and if one of the buttons becomes damaged then it may need to be replaced. This guide will demonstrate how to remove the Touch Control Panel in the Samsung Radiant 360 R1.

  1. qFj6A6DOJjkmwn4g

    • Working on your device while it is turned on may result in electric shock. Make sure to shut down and unplug your device before you begin.

    • Use the plastic opening tool to lift and remove the rubber grommet plugs.

  2. pJ21wxngg13RTVPU

    • Using a PH1 Philips screwdriver, remove four (9.5mm x 1.6mm) screws from the base plate.

    • Remove base plate by stabilizing speaker and using plastic prying tool to pry the base plate from the speaker.

  3. Zbs1l32MBXQsce4v

    • Place the speaker on the table with the Touch Pad facing down. This will leave you with the Port Panel exposed.

    • Remove speaker grill by stabilizing speaker on a table and applying pressure to the bottom of the speaker. Slide the speaker grill up and away from the remaining endcap.

  4. mb5SXhoEUDmuW2qO

    • Remove the two exposed (9.5mm x 1.6mm) PH1 Phillips screws on the Port Panel.

    • Remove the Port Panel from the speaker body, exposing the ribbon cables.

  5. TDdcMom4Duo5aTAE

    • While stabilizing the Port Panel remove the two ribbon cables one at a time by pressing the locking clip down on the ribbon cable connectors and pulling the connector away from the Port Panel.

    I understand this is a guide for working on the Samsung wam 1500 yourself. But where can you get the parts from. I can not find them online. I need to replace the usb/power port panel

    Brian Vickers -

  6. OfNRnIwqrxTIamBg
    OfNRnIwqrxTIamBg
    j6sx4MU1QdHqB1Vs
    NYLtqPYOsgK3RaCe

    • Remove the four (9.5mm x 1.6mm) PH1 Phillips screws on the port speaker body.

    • Remove the Port Panel exposing the subwoofer.

  7. FDVkLv4f6NHamQZo
    FDVkLv4f6NHamQZo
    FDYKClpCfaWQR1QK
    NjiqehJNBjQI6sao

    • Remove the eight (9.5mm x 1.6mm) PH1 Phillips screws on the right side of the speaker body.

    • Remove the one (9.5mm x 1.6mm) PH1 Phillips screw on the left side of the speaker body.

    • The body sides are denoted with a "R" and an "L" for right and left sides.

  8. 5HGjoLHovcoaZ4Eo

    • Open up the body to expose the inner panel and motherboard.

  9. C1DJUMybxBCCwgVV
    C1DJUMybxBCCwgVV
    yqNJJbCpPNuknafI
    m3JlOBBYIms2bxxk

    • Remove the ribbon cable from the tweeter which is attached to the main motherboard.

    • Slide the tweeter out of the enclosure.

  10. flAokWuGehlXZGHv

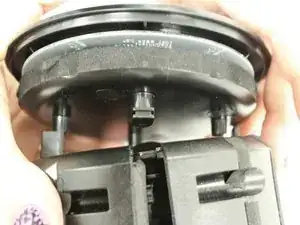

    • Separate the control panel from the base.

  11. mnPKfkFTSDPNXVvZ

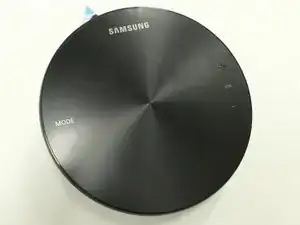

    • Control panel is now removed.

Abschluss

To reassemble your device, follow these instructions in reverse order.
