Samsung Refrigerator Evaporator Drain Clip Replacement

Geschrieben von: Deep Patel
  • Kommentare: 4
Samsung Refrigerator Evaporator Drain Clip Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

10 Minuten

Einleitung

If you have noticed water leakage inside your Samsung Refrigerator, and you don’t know where it came from, you likely have an ice buildup in the draining well. It is likely that the old evaporating clip is not doing justice and caused an ice buildup which led to the leakage.

If you notice leakage, it is important to complete this replacement as soon as possible. Water leakage in places with electronic components can cause your refrigerator to short out and can even lead to fires.

This fix does not require any special skills. As long as you follow the guide with all safety precautions, you will be able to perform a successful replacement of the evaporating clip in your Samsung Refrigerator.

Be sure to unplug and empty the refrigerator before disassembling.

  1. OGugCQyFVWPiQMYk
    OGugCQyFVWPiQMYk
    DmtY5DZDJMd3KrKJ
    hWitLAP2UaBXGWfc

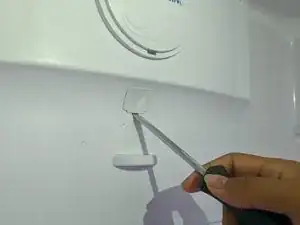

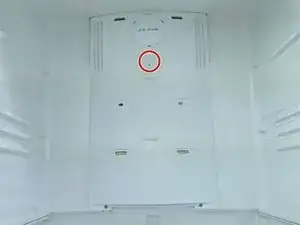

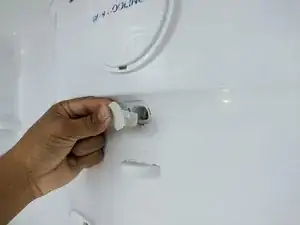

    • Using a spudger, pry off the cap covering the topmost screw.

  2. dmZ35THGLEPH2bLN
    dmZ35THGLEPH2bLN
    xFR521JrLhZDM4fN
    lsWWuGHJLdvZnqi3

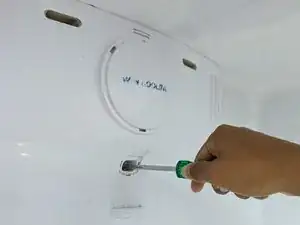

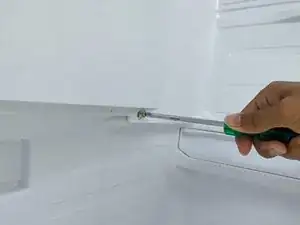

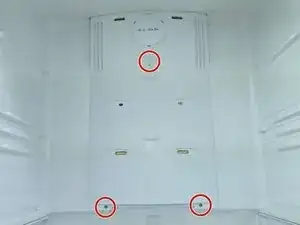

    • Remove three 12.7 mm screws using a Phillips #0 screwdriver.

  3. IcGJATShgMXlErQO
    IcGJATShgMXlErQO
    6EfpwDFiwhwaGHwI
    C3cPBYVOWTHlAmvD

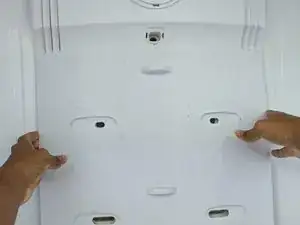

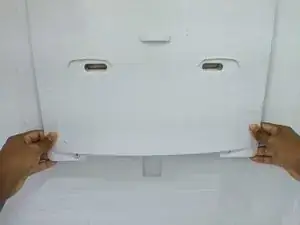

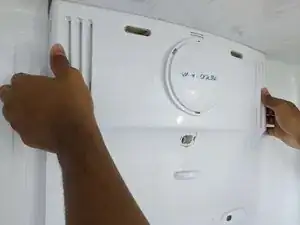

    • Use your hands or a spudger to pry back the plastic cover starting from the bottom.

    • Once all the clips are pulled out, loosen the cover by pushing it slightly up and out.

    • Do not pull the cover off yet; there are still connectors attaching the cover to the fridge.

  4. WDGaFBkVjJbd4UVn
    WDGaFBkVjJbd4UVn
    DYqf6XId3EBk1WBR
    JJwXaEVkQPdTOvGw

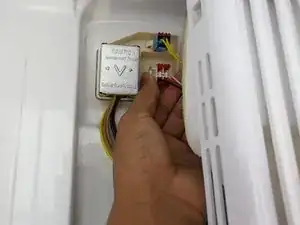

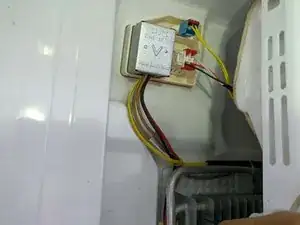

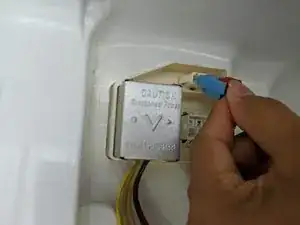

    • Gently unplug both connectors.

    • Remember their orientations as it will be important during reassembly.

  5. wFLIDEpdQ1s6pHHC

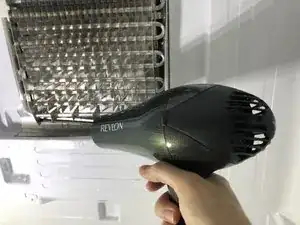

    • Using a hair dryer or heat gun, melt down any ice buildup in the draining well.

  6. bKrFNf3OL6LkZmXM

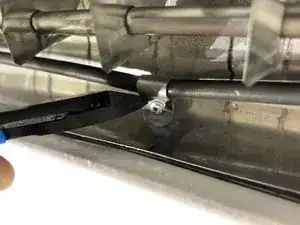

    • Cut out the old evaporating clip using a pair of cutting pliers.

  7. ufaRdnEQOq5ZEVpR
    ufaRdnEQOq5ZEVpR
    SbEFsCkBAhUivnPG
    2NSbR2NtDlIMB5WQ

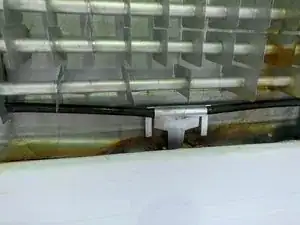

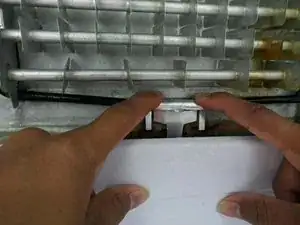

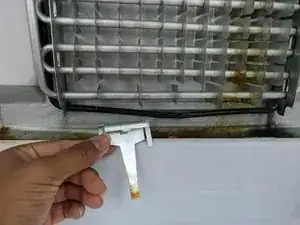

    • Replace the old clip with a new evaporating clip.

    Here's a YouTube video of the same fix https://www.youtube.com/watch?v=rwSSMF6S...

    Note that the YouTube video just calls this an ice dam that can be fixed by disassembling and melting the dam. It isn't a permanent fix but uses no new parts.

    This IFixIt solution shows installation of a new evaporating clip that extends down into the area where the ice dam forms and presumably keeps a dam from forming in the future by melting the dam each time the evaporator coil cycles in defrost mode to remove ice from the coils themselves. I also wonder if the problem is partially exacerbated by mold growth in the drain hole in the draining well.

    DISCLAIMER - I have not performed the repair yet, but am very grateful that the problem and two solutions are now documented. Thanks!!

    Rick Cunningham -

Abschluss

To reassemble your device, follow these instructions in reverse order.
