The battery cover can break off fairly easily if you're not careful, as it is attached by only a single hinge. This guide will show you how to replace it.
-
-
Placing your thumb on the battery cover, push outwards, away from the camera in the direction the arrow is pointing. If done correctly when it's completely unhooked, the latch will open.
-
-
-

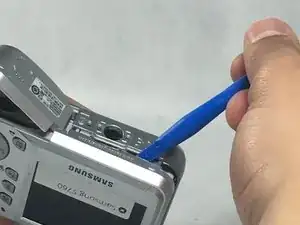

Use the plastic opening tool to pry open the back case, following alongside the edge of the case if need be.
-
-
-

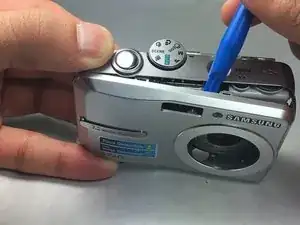

Once the back case is removed, use the plastic opening tool to gently pry off the front case.
-
-
-

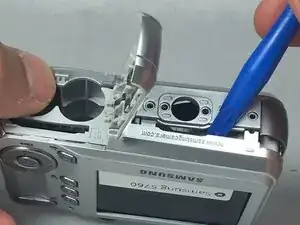

Using the pointed end of the Spudger, push the metal pin out of the hinge as far as it will go (this will typically be halfway).
-
-
-

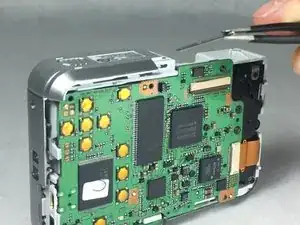

Using the tweezers, grasp and pull the portion of the pin that is sticking out of the hinge.
-
-
-

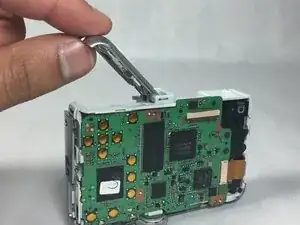

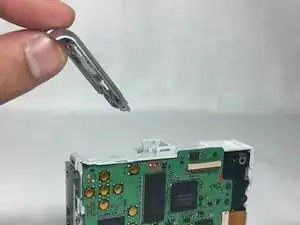

Pull the battery cover in the same direction you pushed to open it. The cover should come right off.
-
To reassemble your device, follow these instructions in reverse order.
