This guide will show users how to remove and replace the lens unit if the unit is malfunctioning or damaged.

  1. flW5ZhXJqRJe3WTw
    flW5ZhXJqRJe3WTw
    CFmSVnEZXsVfWJPN
    wwUplbNmQuTGRW1T

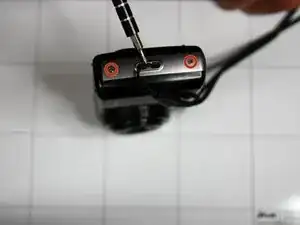

    • Remove 8 screws securing outside shell. Screw locations can be found in pictures

    • Place Screws on magnetic surface or location where they will not roll away

  2. 1NhWiGfGJ22X22FW
    1NhWiGfGJ22X22FW
    3SUOYfScksQKOU2H
    FXjMtZY52pWYVYQW

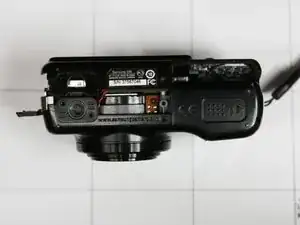

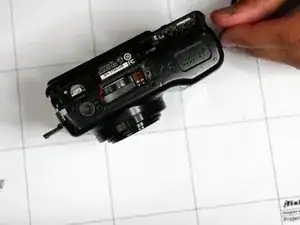

    • Rotate camera such that battery door is facing upwards

    • Squeeze area where fingers are located with thumb and remove outside shell.

  3. Pgj5Q12EYjEiMtJY
    Pgj5Q12EYjEiMtJY
    gjsyjtbFNEM3GEBS
    vlSSjAxBPxtyolXg

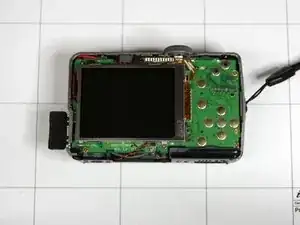

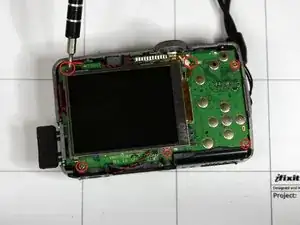

    • After removing you see a few wires and a screen placed on top of the circuit board looking similar to the first picture. If you don't, you might have not taken apart the wrong camera, yikes!

    • The second picture outlines where you can locate all the surface screws. Note that these will not be the only screws needed to be taken off to remove the circuit board.

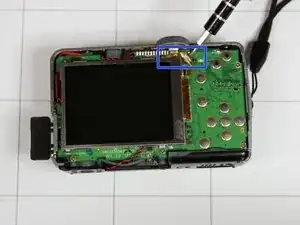

    • As shown in the third picture be careful when removing the screw hidden behind the circuit.

  4. TJwgdGOtCiUMMZwQ
    TJwgdGOtCiUMMZwQ
    vWSTQxHEuITe6usA

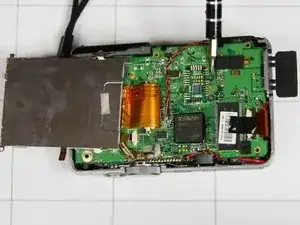

    • After removing two screws holding screen down flip screen over gently.

    • Remove three screws underneath screen as shown in pictures

  5. nVjWJEFdrogCwBh6
    nVjWJEFdrogCwBh6
    RNOmaPN3J4YIa6vZ

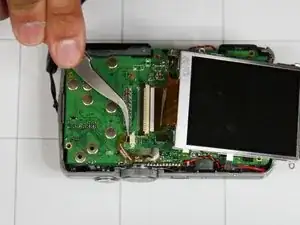

    • Using tweezers, pinch white portion of circuit as shown in picture and twist upwards. This should loosen the circuit itself.

    • Using tweezers, gently remove circuit from white plastic attachment.

    • Flip screen over and remove top most circuit closest to power button using same method.

  6. TQGdxcwcJprKPwZZ
    TQGdxcwcJprKPwZZ
    vgyCPji5JO6quHaG
    DohIiqRctvi1hNsD

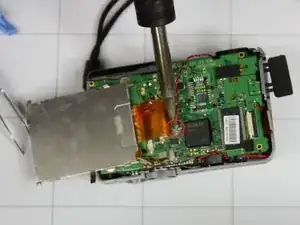

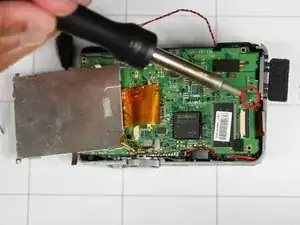

    • Be very cautious when using a soldering iron for the next couple steps (they are on average 300 F)

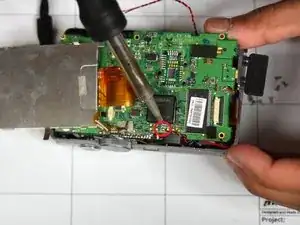

    • Using a soldering iron, remove solder from each circled location in each image to remove corresponding wires

  7. qaKSsnnIuTuwlEUZ
    qaKSsnnIuTuwlEUZ
    cNflLemmGBJwBBq4

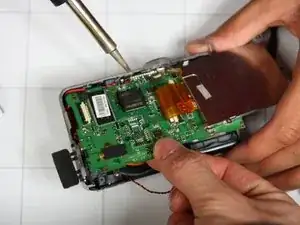

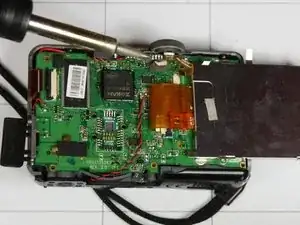

    • Using soldering iron, melt away solder and warm up metal located at top of circuit board as shown in picture

    • Repeat step two to three times until board feels flexible to bend

    I cannot find the metal bar to heat uo. The back case feels fairly loose but does not come off. Is there another approach? Maybe the back case comes off also to allow access to the board and lens unit. Any advise?

    cecil butcher -

  8. hBXCyCAYQEhBCQG1

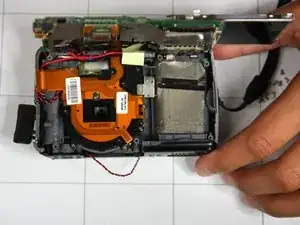

    • Slowly bend circuit board upwards (towards power button) until at 90 degree angle with remaining part of camera.

  9. 4nADRmvcQF1PPaxs
    4nADRmvcQF1PPaxs
    BLec6kCBp6anIZwC
    iYO4jhL5AZiOQPTN

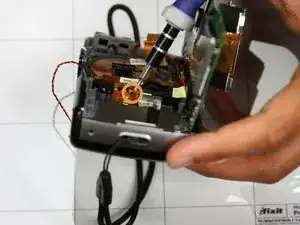

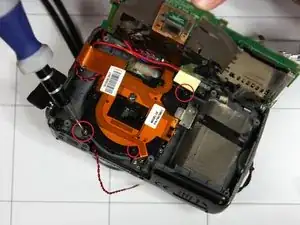

    • Remove three interior screws as noted in the first picture.

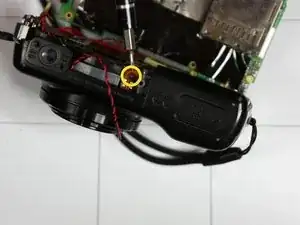

    • Remove screwed attached to orange circuit ribbon as shown in second picture.

    • Remove third screw attached to orange circuit ribbon as shown in third picture.

  10. hvsFcuwBaFSOeNBW
    hvsFcuwBaFSOeNBW
    OPSJO5oBUuZEh2TI
    ZQ6skyMes4JQZJXl

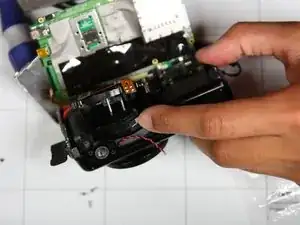

    • Using screwdriver, remove silver metal piece located in center of camera.

    • Using tweezers, gently remove orange circuit from lens. This step is tricky as the orange circuit is very securely placed in the lens.

    • After the removal of the silver piece and orange circuit remove black circle from center of camera. This is the lens

    • Gently remove top portion of lens as shown in the third picture.

  11. AUw5xs4dvRS5m54o
    AUw5xs4dvRS5m54o
    FeFMKQdeufxxteqv
    • Remove two screws attached to internal part of lens using screwdriver

    • Using tweezers to remove thin black layer to reveal lens.

Abschluss

To reassemble your device we have provided pictures working backwards.
