Samsung S85 Screen Replacement

Geschrieben von: Avinash Salgam
  • Kommentare: 1
Samsung S85 Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

15 Minuten

Einleitung

This guide will explain how to successfully remove the screen underneath the outside shell and on top of the circuit board.

  1. YPeJaUQNWmrLsL6W
    YPeJaUQNWmrLsL6W
    16Z1XOyB3cjURGLk
    nyZNpldOjZf6QCQr

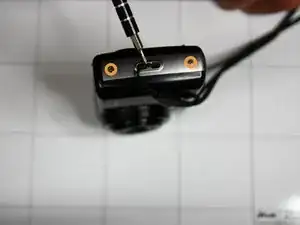

    • Remove 4 screws from bottom of camera

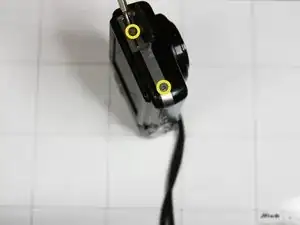

    • Remove 2 screws from side of camera

    • Remove 2 screws from side of camera

    • Place Screws on magnetic surface or location where they will not roll away

  2. 25YvAOnd5Bu5RhSO

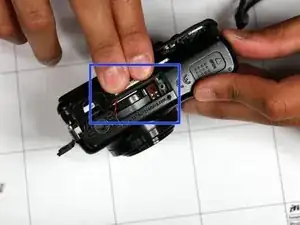

    • Squeeze area noted by blue square and pull outside shell apart from remaining camera.

  3. EI1ygwLy5CJYojVn

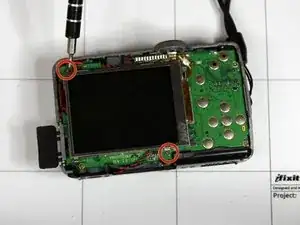

    • Remove two screws holding screen to circuit board marked by red circles

  4. WIjyycAjCF5AUm4S
    WIjyycAjCF5AUm4S
    dD4A3xTxgKEl4RNI
    S31Iilomt2fj5AgL

    • Lift screen up such that orange circuit ribbon fully extends

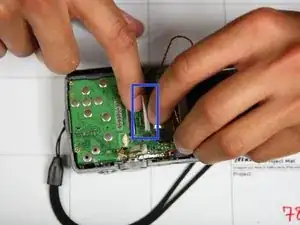

    • Flip white peg up noted by blue box

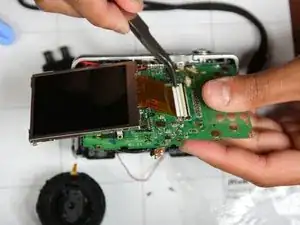

    • Using tweezers gently remove orange circuit ribbon from white peg. Make sure white peg remains up otherwise ribbon may tear.

    I have Samsung s85 camera but display is not working

    Can you sell a display??

    shivamthakor446 -

Abschluss

To reassemble your device, follow these instructions in reverse order.
