Einleitung

When you use your camcorder to record video, you’ll find that the hand strap is one of the most useful components to stabilize your image/video. The hand strap in your device is likely to wear out and become unusable. If you’re looking to replace a worn out or damaged hand strap, follow the steps in this guide.

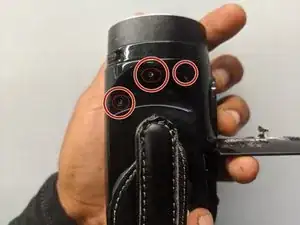

  1. vRvCeEt1T6qoEnHN
    vRvCeEt1T6qoEnHN
    A3GWijpP3NqGBLdp
    seLDZeEfUgsgBOg6

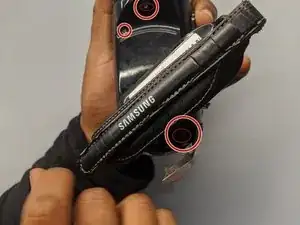

    • Remove all eight screws using the Phillips #000 screwdriver.

  2. ZsFofZVAltGQOVoL

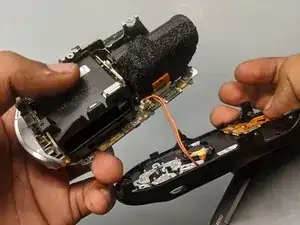

    • Pull apart the sides of the camera once the screws are removed.

  3. DVexaMkHXYFVRgjq

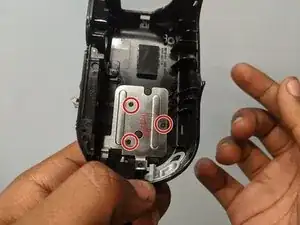

    • Remove the three screws using the Phillips #000 screwdriver.

  4. bIUsAFwrNrKDpYKC

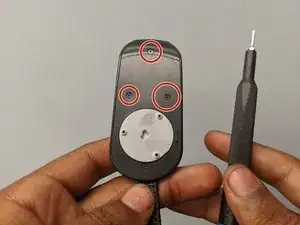

    • Remove the three screws using the Phillips #000 screwdriver.

  5. XTKDDNTAdnOmrFX4
    • Remove the four screws using a Phillips #000 screwdriver.

  6. lrEVdOE5HlvXcDSm
    lrEVdOE5HlvXcDSm
    IBF6xXvbjvcPVDrq

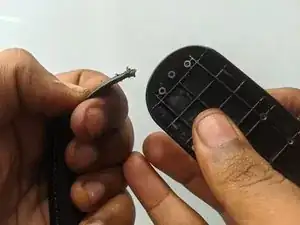

    • Remove the hand strap from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
