The lens of a camcorder is one of the most important components of the device. However, the lens is also susceptible to cracking and becoming dirty. A dirty/cracked lens may affect the outcome of the photographed results, so a replacement may be in order.
When the lens of a Samsung camcorder are damaged or non-functional, it would need to be replaced. This guide will show you how to remove the lens in your camcorder.
Werkzeuge
-
-

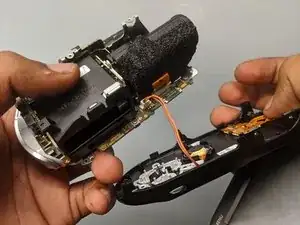

Unplug the cord connecting the LCD section of the device.
-

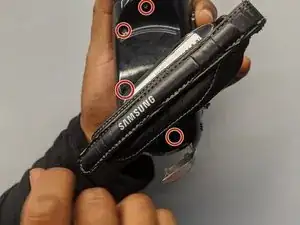

Remove the left face of the device.
-

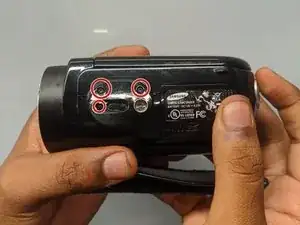

Remove the top face by removing the three 4mm screws using a Phillips #000 screwdriver.
-
-
-
After removing the body of the device, unscrew the two 3.5mm Phillips #000 screws holding the battery compartment in place.
-

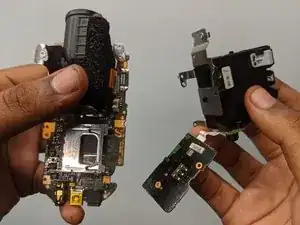

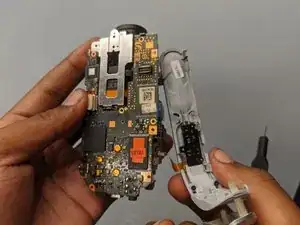

Remove the battery compartment.
-
-
-

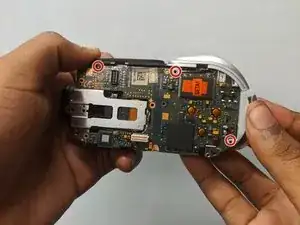

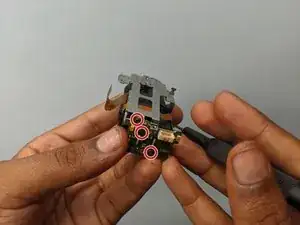

Remove the three 3.5mm Phillips #000 screws on the metal part from the lens component.
-

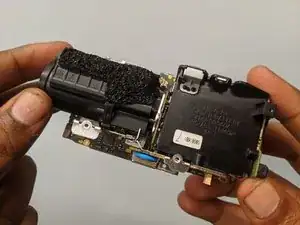

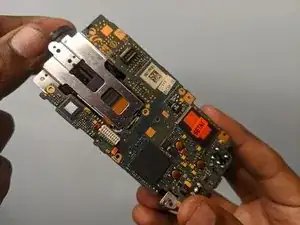

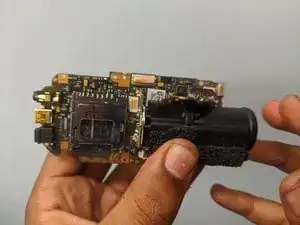

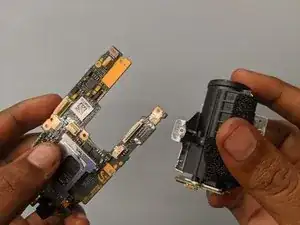

Remove the motherboard from the lens.
-

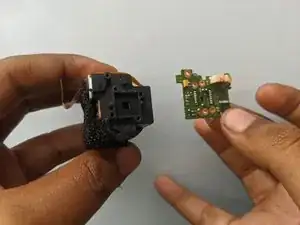

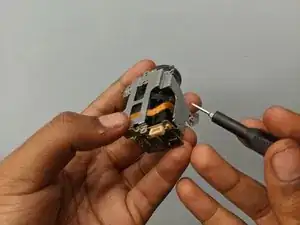

Remove the lens from the lens assembly.
-
To reassemble your device, follow these instructions in reverse order.
