Einleitung

  1. dXifXxW1lcjaZAGU
    dXifXxW1lcjaZAGU
    14NFQgXttCg4wi1v
    • Place the phone so that the back is facing you. Depress the locking tab on the back of the phone with a finger or thumb.

  2. waUvSSPR3EjLk3Iv
    • Slide the battery toward bottom of the phone, about a quarter of an inch, to clear the hooks that keep it secured to the back of the phone.

  3. mVHvyPrVbvA2DUei
    • Lift the battery away from the phone case.

  4. idJBpyksjLKAhtKj
    idJBpyksjLKAhtKj
    ELCL5LC6yCqev3wc
    • Grasp the antenna firmly and rotate it counterclockwise to unscrew it from the phone.

  5. OOWZdH6OgvjonBbM
    • When unscrewed, pull the antenna straight up and out.

  6. UxWMbkQWFEMlnLHx
    UxWMbkQWFEMlnLHx
    MP2NWhvyPLYfOZs1
    • Pull the guide tube free from its retaining ring and slide it out the top.

  7. dyRBQAs6fK4PcVud
    • Remove the four screws using a T6 Torx screwdriver.

  8. kJvCRhNyHCjYcQef
    kJvCRhNyHCjYcQef
    rgnR1sowUCwd2VdN
    • Work from the bottom of the phone, separating the two halves of the case.

    • Note: Take care to keep the logic board with the front case half. Part of the logic board is exposed to the sticker under the battery on the rear case half.

  9. ZTeahUoxWgoeyUMx
    • Angle the rear case half away from the top of the front case half, pivoting the hooks out of their clasps.

    • Caution: Do not fully separate the halves. There is an antenna ribbon connected to the logic board from the back cover.

  10. THwrGCQpekeIuBBh
    THwrGCQpekeIuBBh
    GVJDweIvZT4bRccE
    thuEtYNntvm5t4T5
    • Disconnect the antenna ribbon cable from the logic board at the Zero Insertion Force (ZIF) connector. The brown portion of the connector lifts up to release the cable end.

    • The Back Cover is now removed. Congratulations.

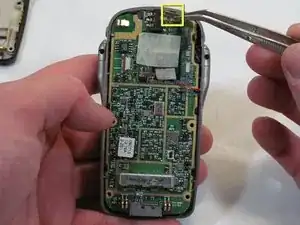

  11. hTMHCxStLZWWe6cO
    • Remove the connector for the earpiece speaker, located on the upper end of the logic board.

  12. wJ34uLLtD4VAmKUM
    • Turn the front cover over, gently prying the logic board away from the front cover. It will remain attached by two wires from the front of the board.

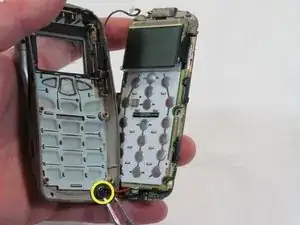

  13. oXV2Qk4vkyDTQXwh
    oXV2Qk4vkyDTQXwh
    AGRgWLwIgB6K11OQ

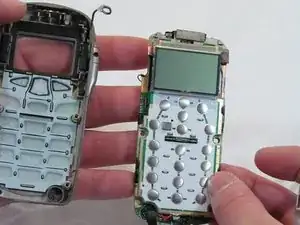

    • Work the microphone out of its socket on the front cover; it will remain attached to the logic board, its wires are soldered.

    • The logic board is now removed from the phone. Congratulations.

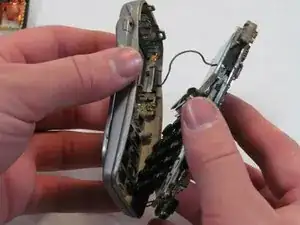

  14. nNIXDueRiiXmpecL
    nNIXDueRiiXmpecL
    6MIkCSQZYALZkRQa

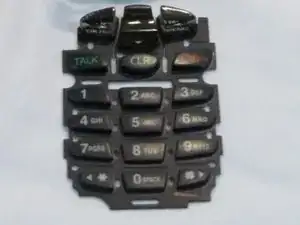

    • Turn the front cover over and shake the keys out of it. They should come free in a single piece.

    • Note: The keypad may accidentally come free while removing rear cover or logic board. It is best to remove the logic board to reinstall the key mat.

    • The key pad is now removed from the phone. Congratulations.

Abschluss

To reassemble your device, follow these instructions in reverse order.
