Einleitung

Installing the front cover of the phone.

  1. gIuOJlFrvh6PsUnI

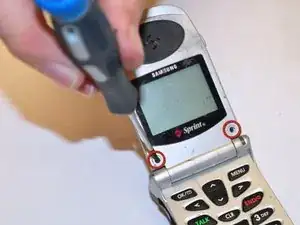

    • Use a Philips #0 screwdriver to remove the two screws below the screen.

  2. le5o3qQGxdeAyYGt
    le5o3qQGxdeAyYGt
    oCZZEHV2lhHDVcct
    RJTaKkFVahwcPcNr

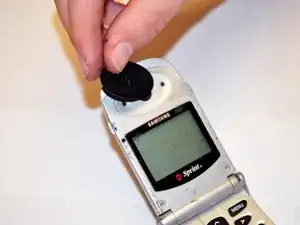

    • Using the spudger, separate the black speaker cover from the top part of the phone.

    • Gently remove the black speaker cover completely.

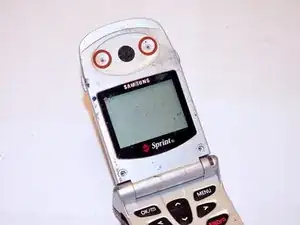

    • Remove the two screws, approximately 10 mm in length, behind the black speaker cover with the screwdriver.

  3. bF3oTIURc2GGR1AC
    bF3oTIURc2GGR1AC
    UnPqhUI4eGaBnjBu

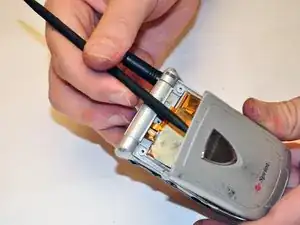

    • Once the two screws are taken out, use the spudger to remove the front cover of the phone.

Abschluss

To reassemble your device, follow these instructions in reverse order.
