Samsung SCH-A670 Screen Replacement

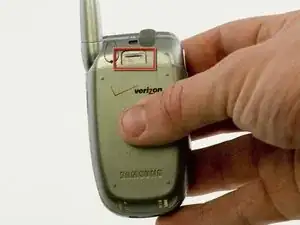

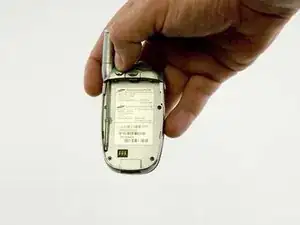

Slide the latch on the back of the phone up.

Remove the battery.

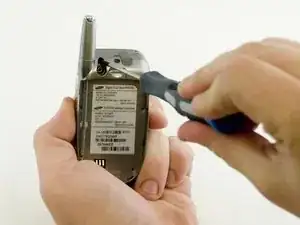

After removing the battery, remove the four small Phillips-head screws with a #0 Phillips screwdriver.

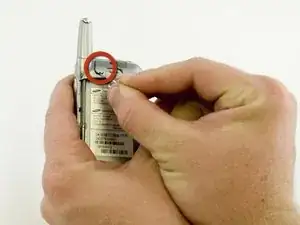

Using a thumbtack, pry the small plastic cover from the case near the base of the antenna.

With a #0 Phillips screwdriver remove the screw which you just uncovered.

Using the spudger, carefully pry the case apart starting near the charging port. Ease the case open.

Then disconnect the small power connector near the top of the phone.

Gently pry up the ribbon-type connector with the spudger.

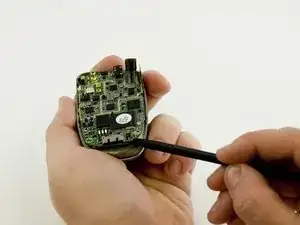

Carefully pry the logic board from the case with the spudger.

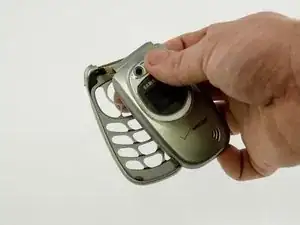

Once the logic board has been removed, peel the keypad up.

When using a spudger the keypad housing comes off quite easily, although it may be necessary to guide the ribbon cable through the slot in the housing.

Remove screws with #0 Phillips screwdriver.

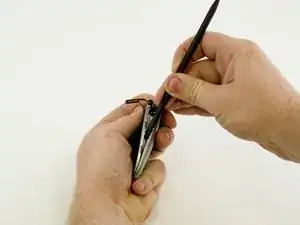

Carefully pry apart the casing with the spudger tool.

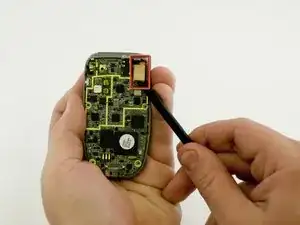

Use the spudger to carefully pry off the speaker.

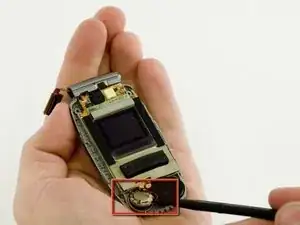

Carefully pry off the ringer with the spudger.

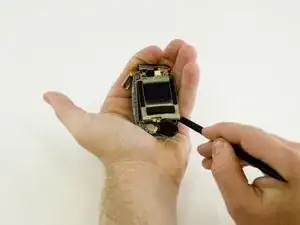

Carefully pry off the screen with the spudger.
