Samsung SCH-A950 Volume and Camera Buttons Replacement

Geschrieben von: Sean Kennedy
  • Kommentare: 0
Samsung SCH-A950 Volume and Camera Buttons Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

3 Minuten

Einleitung

This guide will teach you how remove your Samsung's SCH-A950's Volume and Camera Buttons.

  1. 6VIXrjwZyCHbD4GF
    6VIXrjwZyCHbD4GF
    AfIIAsUpiLXhJxmF

    • Slide the the battery release tab upwards while simultaneously lifting the back cover straight up.

  2. qEtOb3Ch1pbKUUoH

    • Remove the four Phillips #00 screws underneath the battery.

  3. yMyRZJhXQdISiWcZ
    yMyRZJhXQdISiWcZ
    dLHIIAMQsEU3hNhF

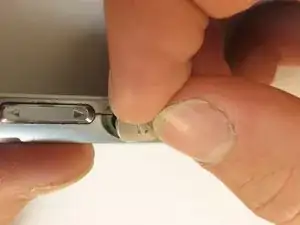

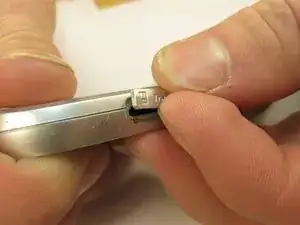

    • Pull open the earphone tab and the Trans Flash tab using your fingers.

  4. aTWK3KREXD3SksdI

    • Using a plastic opening tool, pry off the phone casing near the speakers as shown. Tabs located on the inside of the phone may make this difficult and some force may be required.

    • Slide the casing slightly forward towards the top of the phone to remove.

  5. 1g6l4HVbtgkAnFFg
    1g6l4HVbtgkAnFFg
    5GoO4MvD2X1IxaBd
    sIBZkJgraMaGtvWb

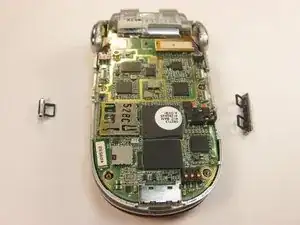

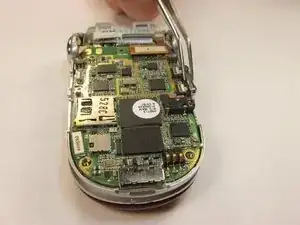

    • Using tweezers or your fingers, lift off buttons from logic board.

    • The buttons can be replaced if needed.

Abschluss

To reassemble your device, follow these instructions in reverse order.
