Samsung SCH-R355C Keyboard Replacement

Geschrieben von: Lorena Valdes
  • Kommentare: 0
Samsung SCH-R355C Keyboard Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

20 Minuten

Einleitung

This guide will teach you how to pull apart the Samsung SCH-R355C and replace the keyboard membrane.

  1. ndWBcGIlABjMkwjH

    • Pull down on the back of the phone to pull it off.

  2. IZKEJMIn33mcvLxQ
    IZKEJMIn33mcvLxQ
    dN4c1ZPWwmVYEPXF

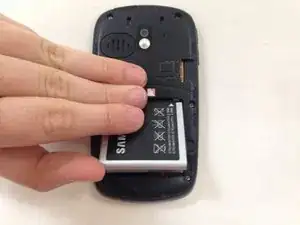

    • Remove the battery from the phone.

  3. e2IUirAQCkh3lIex
    e2IUirAQCkh3lIex
    hDVMRkKmUE5HXXD1

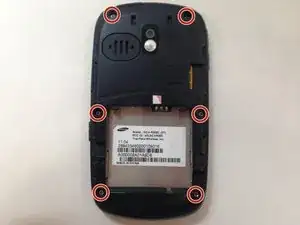

    • Use a small #00 Phillips-head screwdriver to unscrew all 6 of the 4 mm back screws.

  4. 2CHsSDTDeZnlhG3U

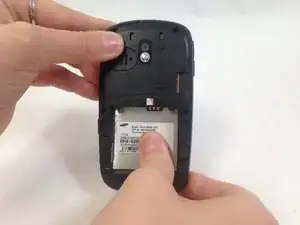

    • Push down on the silver part of the phone where the battery used to be located. Hold the back of the case to catch it as it comes off.

  5. XlvJgdgqftaDwcD1
    XlvJgdgqftaDwcD1
    4ShIdtHjarrHl6FI

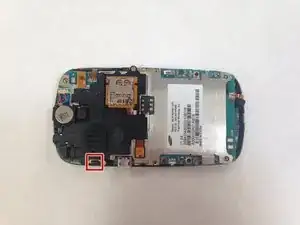

    • Pry away the friction holder on the top left-hand side of the motherboard. This will release the motherboard.

    • Don't rip the cord attaching the motherboard to the case when you lift the motherboard up. This will render the phone unusable.

  6. FKeKsMHrthQQvMKP
    FKeKsMHrthQQvMKP
    ErJWBj3ZfbLX2WKi

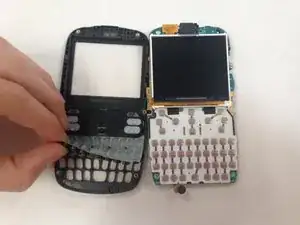

    • Lift the keyboard membrane from the bottom and replace it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
