Is your flash weak or not working at all? It could be your flash capacitor. Here's a replacement guide to help.
-
-
Unscrew all visible screws indicated by red circles with a #00 Phillips driver.
-
Slide memory card cover and unscrew hidden screw underneath with a #00 Phillips driver.
-
-
-

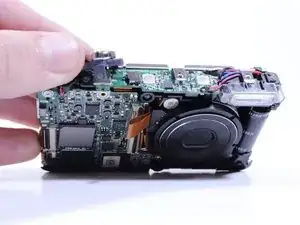

Remove the flat side panel by applying gentle pressure toward the bottom of the camera.
-
Remove the corner panel by applying pressure away from the shutter button.
-
Remove the top panel by applying gentle pressure away from the shutter button.
-
-
-

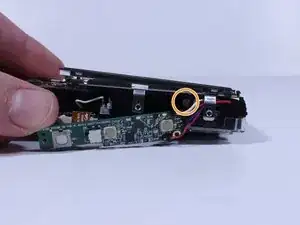

Remove the 3 visible screws with a Phillips #000 Driver
-

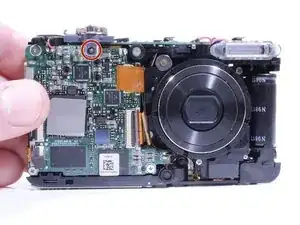

Move the circuitry and wires out of the way to expose another screw, and remove it with the same driver.
-
-
-

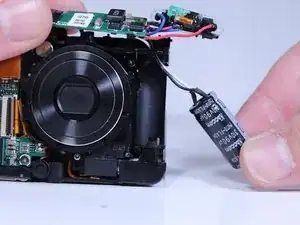

Pull the flash capacitor out of its compartment to expose the wires connected to it.
-

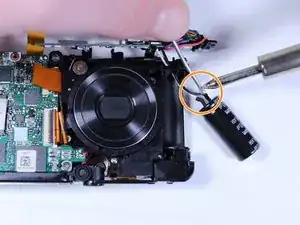

Cut the connecting wires with wire cutters.
-
Solder the wires to the new power source with a soldering iron and electrical solder.
-
To reassemble your device, follow these instructions in reverse order.
