Samsung SCV-VLUUST50 Screen Replacement

Geschrieben von: Evert Jordan
  • Kommentare: 0
Samsung SCV-VLUUST50 Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

15 Minuten

Einleitung

Is your screen broken or faulty? This guide will help you replace it.

  1. GMwOD2xRYq3VGBtF
    GMwOD2xRYq3VGBtF
    eST6lB3OgJaLWhN5
    RBH3oXQKKmr3gckW

    • Unscrew all visible screws indicated by red circles with a #00 Phillips driver.

    • Slide memory card cover and unscrew hidden screw underneath with a #00 Phillips driver.

  2. dEIN6eFaQuuxNb1Q
    dEIN6eFaQuuxNb1Q
    dnf2BsMSgXsHgCfQ
    PMpC2CcUpLKANRS1

    • Remove the flat side panel by applying gentle pressure toward the bottom of the camera.

    • Remove the corner panel by applying pressure away from the shutter button.

    • The memory card cover will come off with the corner panel.

    • Remove the top panel by applying gentle pressure away from the shutter button.

  3. GPHCq3NZEVPZZFmd

    • Remove screws beneath the top panel indicated by red circles with a #00 Phillips driver.

  4. PRjNuBgoW2GYau3r
    PRjNuBgoW2GYau3r
    OYIRDRmYgLIOEaUC

    • Remove the front and back covers by pulling them straight apart.

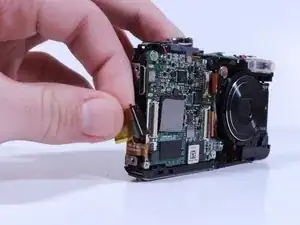

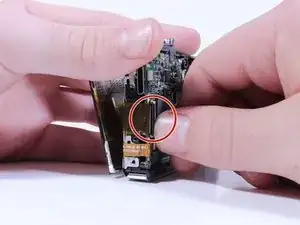

  5. JtawZDL4YWMlNPSG
    JtawZDL4YWMlNPSG
    kTeUrLCtQ1EICZcm
    IjTMPDKfbjC2ilxm

    • Open the ribbon connector with your fingernail.

    • Pull the ribbon out of the connection.

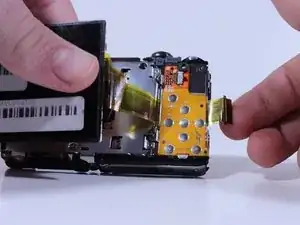

  6. CdIeJHRtkhLyFFNA

    • Pull the ribbon connected to the screen out from behind the button circuitry on the rear of the camera.

    • Feed the new screen's ribbon through the same slot it came out of.

Abschluss

To reassemble your device, follow these instructions in reverse order.
