Samsung SCV-VLUUST50 Shutter Button Replacement

Geschrieben von: Jaeda Ransom
  • Kommentare: 0
Samsung SCV-VLUUST50 Shutter Button Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

5 Minuten

Einleitung

Is your shutter button not working correctly? Here is a replacement guide for the Samsung SCV-VLUUST50 shutter button. You will need a driver kit and a spudger to complete this replacement.

  1. GMwOD2xRYq3VGBtF
    GMwOD2xRYq3VGBtF
    eST6lB3OgJaLWhN5
    RBH3oXQKKmr3gckW

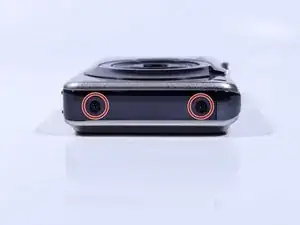

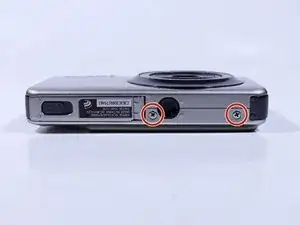

    • Unscrew all visible screws indicated by red circles with a #00 Phillips driver.

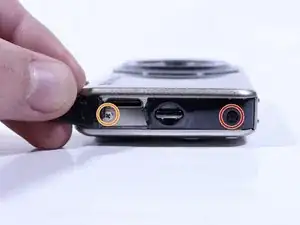

    • Slide memory card cover and unscrew hidden screw underneath with a #00 Phillips driver.

  2. dEIN6eFaQuuxNb1Q
    dEIN6eFaQuuxNb1Q
    dnf2BsMSgXsHgCfQ
    PMpC2CcUpLKANRS1

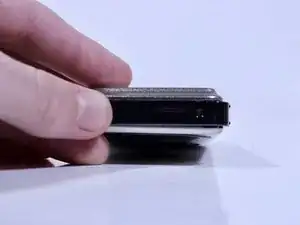

    • Remove the flat side panel by applying gentle pressure toward the bottom of the camera.

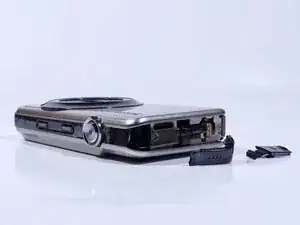

    • Remove the corner panel by applying pressure away from the shutter button.

    • The memory card cover will come off with the corner panel.

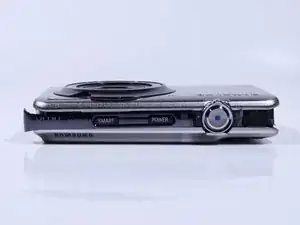

    • Remove the top panel by applying gentle pressure away from the shutter button.

  3. GPHCq3NZEVPZZFmd

    • Remove screws beneath the top panel indicated by red circles with a #00 Phillips driver.

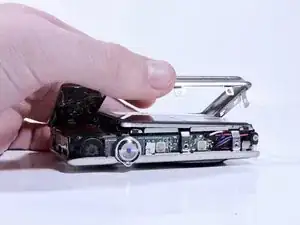

  4. PRjNuBgoW2GYau3r
    PRjNuBgoW2GYau3r
    OYIRDRmYgLIOEaUC

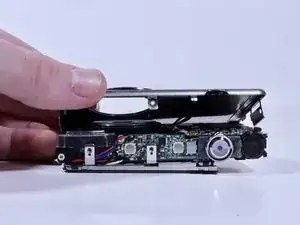

    • Remove the front and back covers by pulling them straight apart.

  5. CYR4YlrMq1nAiPS3
    CYR4YlrMq1nAiPS3
    VtmAfbMktTLiLyXv
    PqxVMFdCFqTUoXpW

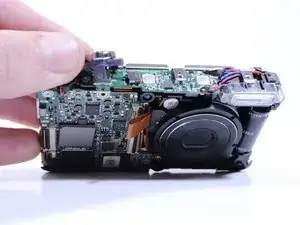

    • Remove the screw below the shutter button with a Phillips #000 screw driver.

    • Once the screw is removed the shutter button should easily come off, and you can replace it with the new button.

Abschluss

To reassemble your device, follow these instructions in reverse order.
