Samsung SGH A707 Speaker Replacement

Press on the markings on the cover and pull it down to reveal the battery.

Use your fingers to pull the battery out of its position. You may also flip the phone and the battery will fall out.

Here is the phone without the battery.

Unscrew the six screws on the back of the phone using the Phillips #0 screw driver.

Use the prying tool the pry off the phone's plastic frame.

Use the prying tool to disconnect the rectangular connector.

Use the prying tool to disconnect the small connector.

Gently pull off the circuit board.

Here is the phone without the logic board.

Hold the phone and gently separate the circuit board that holds the dome switches and the front face of the phone, revealing the rubber keyboard.

Here is the phone without the dome switch circuit board.

Here is the phone and the rubber keyboard.

Here is the rubber keyboard and the dome switch circuit board. A quick inspection of these elements can reveal keypad malfunctions. Look for dirt or debris that do not belong there.

Use the Phillips #0 screw driver to remove the two screws.

Place the screws in a safe place.

Use the prying tool to gently pry the screen off, by slowly moving the prying tool around the entire edge of the screen (roughly highlighted with a red rectangle). You must be very gentle, otherwise the screen will crack.

Now we have access to the camera.

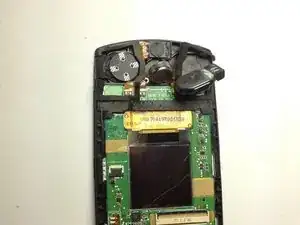

We also have access to the speakers.

Disconnect the flat cable to separate the two pieces.

Samsung SGH A707

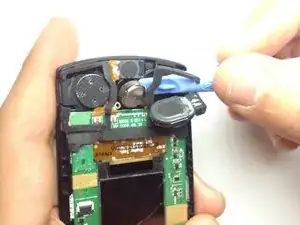

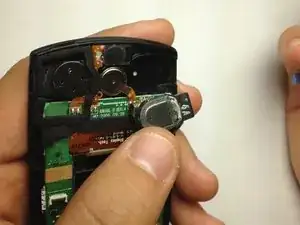

Use the prying tool to remove the speaker. They are secured in place by glue, so some force is needed.

Be careful not to slip the tool onto your hand as you apply force.

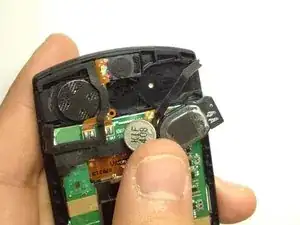

Use a soldering iron to disconnect the wires from the speakers (highlighted in the yellow boxes).

There's risk of skin burn when using the soldering iron, caution is needed.

Avoid breathing in the fumes while soldering.
