Samsung SGH-A117: Breakdown and Reassembly

Veröffentlicht: 19/10/14

Teardown

Einleitung

Samsung SGH-A117 is a basic flip phone. This guide will describe the steps required for disassembling and reassembling the phone.

  1. P1v23HxKQdpGILqo

    • This is the Samsung SGH-A117.

  2. 3YgXB5VaEuqCxPVr

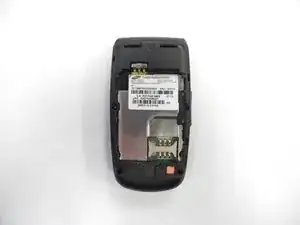

    • This is the back view following the removal of the back cover and battery.

  3. YfYVCMG2gTDuLVM1

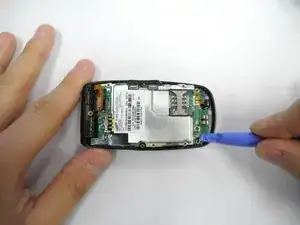

    • Use a screwdriver to remove screws around the frame.

    • Use a PH00 size screw to operate this step.

    • The screws are extremely small. It is recommended to have a small container to keep track of the screws.

  4. VjEK2YfLpRFZWmGD
    VjEK2YfLpRFZWmGD
    BJqx6nQXaWjLGlfx

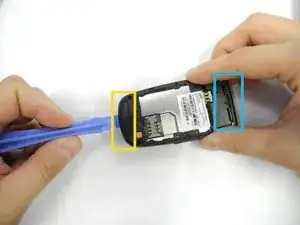

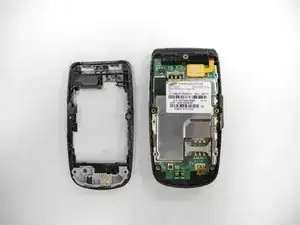

    • Insert the spudger under the back cover at the marked locations and gently lift to remove the back cover.

    • The end of the phone closest to the hinge will require additional force to lift.

    • Be careful not to bend the cover during the removal process.

  5. oqBRLbjWE1tymiqK

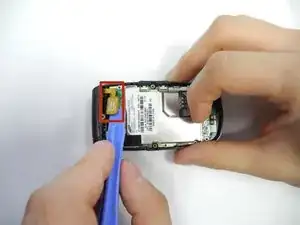

    • Use a spudger to gently lift the circuit connector from the logic board.

    • Be careful not to remove the circuit connector from the phone.

  6. DSnqBwvWUHdopa2A
    DSnqBwvWUHdopa2A
    DA4LFKS1jsQPTBFD

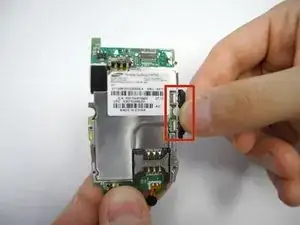

    • Use a spudger to lift the logic board and separate it from the main body of the phone.

    • It is recommended to lift from the bottom part of the logic board as shown in the picture.

    • Be careful not to lose the volume button, which is loosely attached to the logic board.

  7. c2qohCYKUPYlthoF
    c2qohCYKUPYlthoF
    MTZwUv4pnxEkvl1e

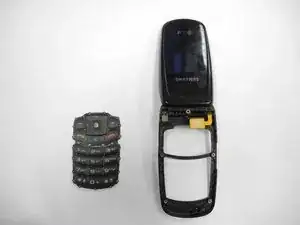

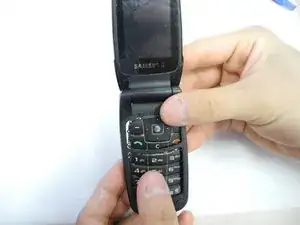

    • Gently push the keyboard from the case as shown in the picture.

  8. XLBaJRZjq3qEIHvI

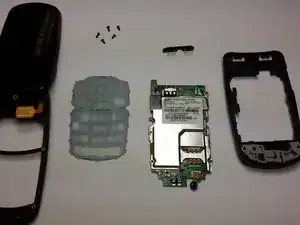

    • 1 Case

    • 1 Keyboard

    • 1 Logic Board

    • 1 Volume Control

    • 1 Back Cover

    • 5 Screws
