Samsung SGH-A237 Back Cover Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

10 Minuten

Einleitung

This repair guide shows how to replace the back cover on the Samsung SGH-237 cellphone.

  1. cVHdtPFp5pHvCJdJ
    cVHdtPFp5pHvCJdJ
    UFJrTclUBuoYElEa

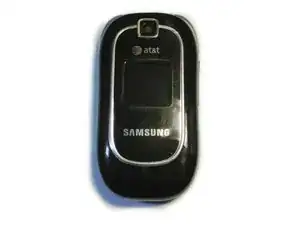

    • Put the phone face down so that the battery cover is showing.

  2. OCDlMYK2nr2M6ucl
    OCDlMYK2nr2M6ucl
    6vtkeCYBJSqGhBHh

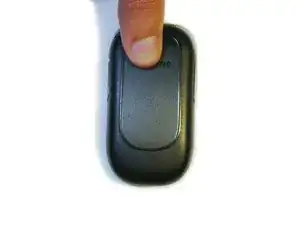

    • Use your thumb to push the battery cover off.

    • Lift the battery off the device.

  3. BbdKt3MJt6rTVULk
    BbdKt3MJt6rTVULk
    yNUpHZV6KfLFS5Qv

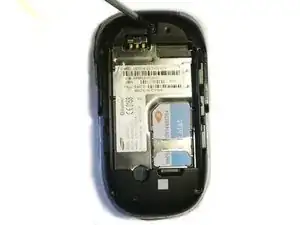

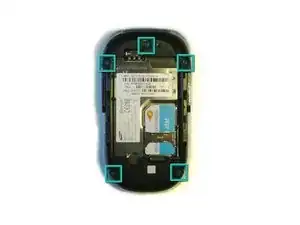

    • Remove the five screws with a size 00 screwdriver. There are 4 in the corners and one on the top as shown.

  4. JXBhLUbBHIkN4ZG5
    JXBhLUbBHIkN4ZG5
    ndMlBmZI1GoMNJLM
    PgftChx11BRn1EN3

    • Carefully remove the back cover by using the iPod Opening Tool in the slots on the bottom of the device.

    • Note: some force must be applied to remove back cover.

Abschluss

To reassemble your device, follow these instructions in reverse order.
