Samsung SGH-A237 Keypad Replacement

Geschrieben von: Shawn
  • Kommentare: 1
Samsung SGH-A237 Keypad Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

15 - 20 Minuten

Einleitung

With this guide you can clean or repair a faulty keypad.

  1. X2ixhqQFHTenQ1hX
    X2ixhqQFHTenQ1hX
    OmKpXSN6gfwDMIhM

    • Place phone face down so battery cover is showing.

  2. vKTcN2lFiRiNlon6
    vKTcN2lFiRiNlon6
    OlCD4uYWPppRDXPq

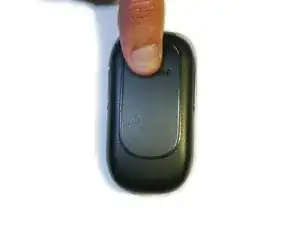

    • Use thumb to push the cover down and off.

    • Lift battery cover off the device.

  3. FBbMAMGAf2kIUgrx
    FBbMAMGAf2kIUgrx
    csS6AioTbJuYUx2q

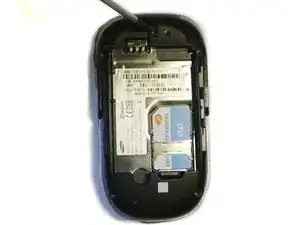

    • Remove the five screws with a size 00 screwdriver. There are 4 in the corners and one on the top as shown.

  4. N3IQTGArHqL4qNla
    N3IQTGArHqL4qNla
    fqlxyGKaRTKYMFoI
    M5vJApROirSxPYjE

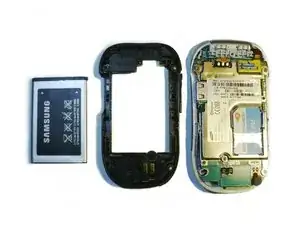

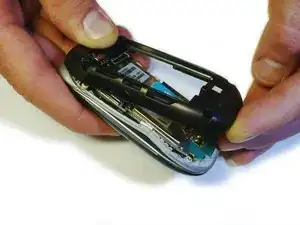

    • Be sure that all 5 screws are removed and start to carefully remove the back cover by using the iPod Opening Tool in the slots on the bottom of the device.

    • Some force must be applied, and the back cover should come off.

  5. mcqjmMnLDx33LAqL

    • Detach the tab from the logic board shown by using the Ipod Opening Tool

  6. s3xFikrMTxgZxSBJ
    s3xFikrMTxgZxSBJ
    ITojZZatlAGTSX21

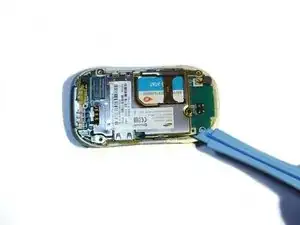

    • Use the Ipod Opening Tool to lift the green logic board carefully.

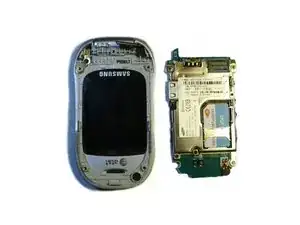

    • Remove the logic board from the device.

  7. S2Mi5XHWuf5FLDjH

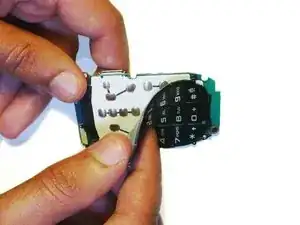

    • The keypad should peel off the logic board with a gentle pull.

    • Use a clean, soft, cotton cloth to gently remove any debris or liquid that may be located on the pad or logic board interface.

Abschluss

To reassemble your device, follow these instructions in reverse order.
