Samsung SGH-A237 Logic Board Replacement

Geschrieben von: Theodore Johansen
  • Kommentare: 0
Samsung SGH-A237 Logic Board Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

10 - 15 Minuten

Einleitung

This repair guide shows how to remove and replace the logic board.

  1. PeQMLufk1WSGcEaN
    PeQMLufk1WSGcEaN
    kBXiRCFplHYGkUvx

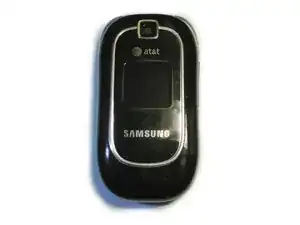

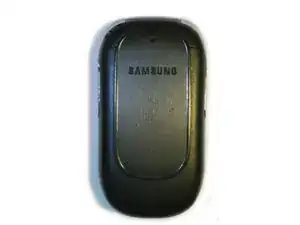

    • Put the phone face down so that the battery cover is showing.

  2. nk3kS6GAFuyF4SZG
    nk3kS6GAFuyF4SZG
    FUXNuRVSavQHlk2D

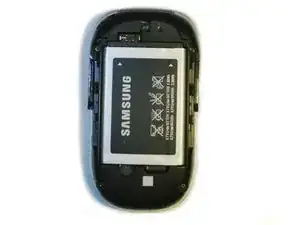

    • Use your thumb to push the cover down and off.

    • Lift the battery off the device.

  3. kqtkId2HhxFo6TUq
    kqtkId2HhxFo6TUq
    DlRvpEsfcwdX4qgN

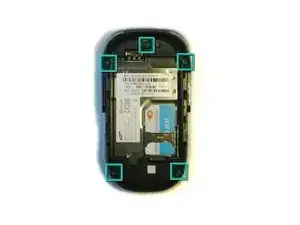

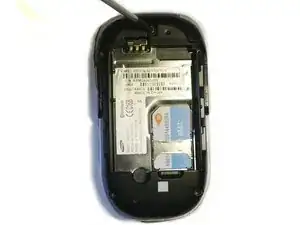

    • Remove the five screws with a size 00 screwdriver. There 4 in the corners and one on the top as shown.

  4. kRZbqYGbkTkcHFSx
    kRZbqYGbkTkcHFSx
    4vlUGSoUyZsWkmqR
    1cJDvPwEEd1lHhNM

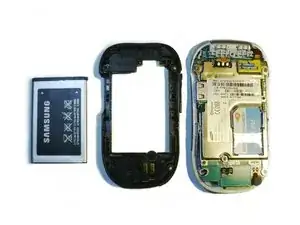

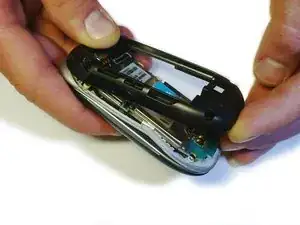

    • Be sure that all 5 screws are removed and start to carefully remove the back cover by using the iPod Opening Tool in the slots on the bottom of the device.

    • Note: some force must be applied when removing back cover.

  5. I6ZScnwXICXFPOvG

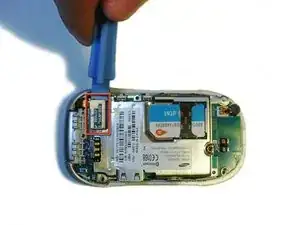

    • Detach the tab from the logic board by using iPod Opening Tool (as shown).

  6. NaQTgCAUHBTE4vH2
    NaQTgCAUHBTE4vH2
    iMR2G2IxJYPpjePy

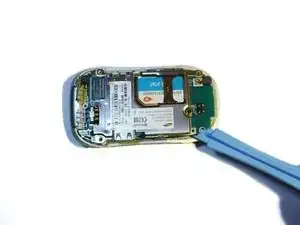

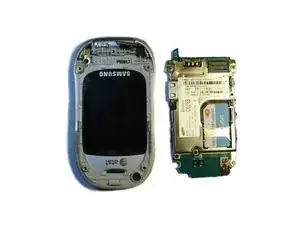

    • Use iPod Opening Tool to lift the green logic board carefully.

    • Remove logic board from the device and replace with new one.

Abschluss

To reassemble your device, follow these instructions in reverse order.
