Samsung SGH-E317 Camera Replacement

Geschrieben von: Michael Strange
  • Kommentare: 0
Samsung SGH-E317 Camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

15 - 30 Minuten

Einleitung

Items needed:

You will need a wedge shaped tool in order to pry open the front panel of cell phone and a screwdriver.

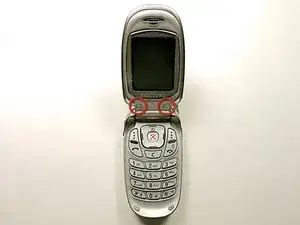

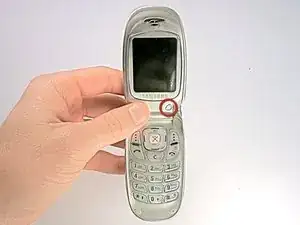

  1. TgnfvJ46QpBsOQ2n
    TgnfvJ46QpBsOQ2n
    vaxOJoknRSbwykCs

    • Remove the plastic coverings at the base of the LCD screen using your fingers.

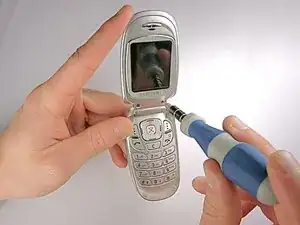

  2. fEQTQfSMBcrWsXFf

    • Remove the two 4.5mm screws located underneath the plastic coverings.

    • You may want to use tweezers to remove the loosened screws.

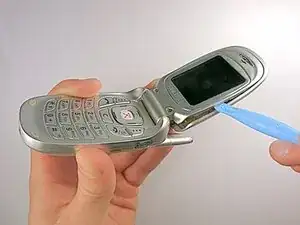

  3. hjxgBPRXFHCggRcF

    • Wedge the plastic opening tool under the crevice on the inner surface of the phone screen.

    • Gently pry the top panel off around the entire frame.

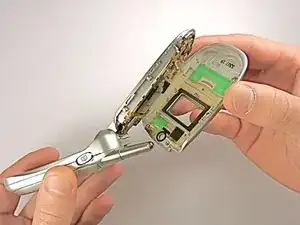

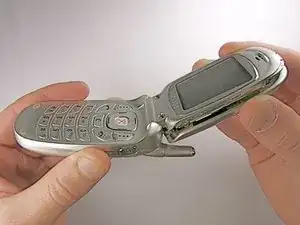

  4. uF6xrXQRLUwKQ6K5
    uF6xrXQRLUwKQ6K5
    XdjLMlVCnf22JNfo

    • Make sure that the top panel is completely separated from the LCD display around the entire perimeter.

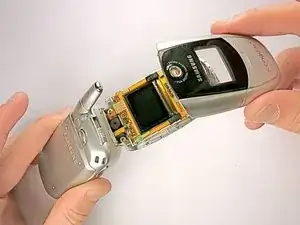

  5. IBgtuQippajhyOrx

    • Remove the top panel.

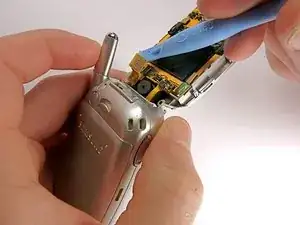

  6. xrHWG3cWbK3pGCLI
    xrHWG3cWbK3pGCLI
    hKVQnrZLIkbljuIT

    • Detach the connecting wire panel from the LCD display system.

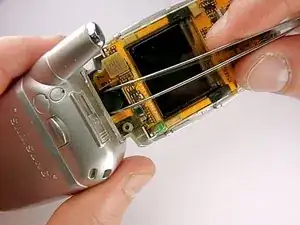

  7. oK6Q1CpJHpVhZmgN
    oK6Q1CpJHpVhZmgN
    qEROAoXWCCSkQvSs

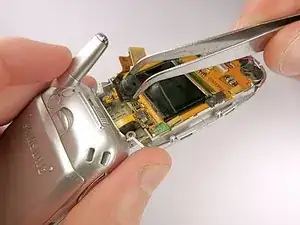

    • Using tweezers, remove the camera from the cellphone casing.

Abschluss

To reassemble your device, follow these instructions in reverse order.
