Samsung SGH-X105 Earpiece Speaker Replacement

Geschrieben von: Chris Lao
  • Kommentare: 1
Samsung SGH-X105 Earpiece Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

10 - 15 Minuten

Einleitung

Replacing the earpiece speaker

  1. rMQNDiEmm1KCPiwg

    • Rotate the phone onto its front side so that the LCD screen is facing away from you.

  2. vj2DswIFHneKVfc4
    vj2DswIFHneKVfc4
    dv4XWR35UOqa6dSw
    lX4CwBdEaeAbEPtq

    • Remove the battery by pressing down on the battery release button while sliding the battery downwards.

  3. VKOm1tNh1PPyuEJF

    • Remove the four small black screws that secure the back phone panel using the Phillips #00 screwdriver.

    • Complete removal of screws may not be necessary.

  4. ZDGRQ43YWxSL1MtB
    ZDGRQ43YWxSL1MtB
    GT4oTcxNsHGygpM1
    3qLKAy5a1xHZqBVQ

    • Carefully separate the front and back panels by gently prying them apart. Start at the bottom of the phone (near the AC charger input).

    • Volume control button will be unsecured and may fall out as soon as the panels are separated.

    • Gentle force may be required to separate the panels at the top latch.

    • There are two wires connecting the front and back panels. Be careful not to rip these wires out when separating the panels.

  5. dE4AYjfXwGaTB65m
    dE4AYjfXwGaTB65m
    Jn21pLKVG1kdaRTd

    • Using your nails, tweezers, or any precise grabbing tool, pinch the antenna wire connector (clear plastic plug) and pull gently. It should pop out rather easily.

  6. mhYgjHlmdCBRqJDB

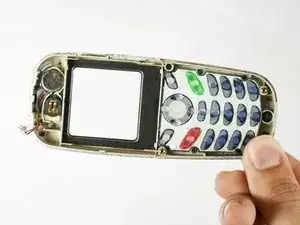

    • Put aside the back panel. You will only be working with the front panel from here on.

  7. WDvLKJtoZNnjGMiP
    WDvLKJtoZNnjGMiP
    UVP5AE14SJJLkwEH
    EXEJnMZfL2srdbIM

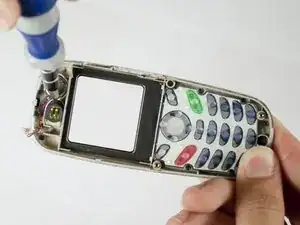

    • Using a SL 1.5 flathead screwdriver (or any small prying tool), pry the speaker from the plastic front cover.

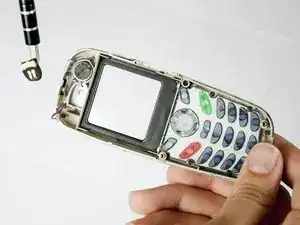

    • The earpiece speaker is magnetic so you can use a magnet to remove the earpiece speaker from the plastic front cover once loosened.

    • You can apply your own adhesive to secure your replaced speaker if desired during reassembly.

Abschluss

To reassemble your device, follow these instructions in reverse order.
