Replace a broken loud speaker.

  1. rMQNDiEmm1KCPiwg
    • Rotate the phone onto its front side so that the LCD screen is facing away from you.

  2. vj2DswIFHneKVfc4
    vj2DswIFHneKVfc4
    dv4XWR35UOqa6dSw
    lX4CwBdEaeAbEPtq
    • Remove the battery by pressing down on the battery release button while sliding the battery downwards.

  3. VKOm1tNh1PPyuEJF
    • Remove the four small black screws that secure the back phone panel using the Phillips #00 screwdriver.

    • Complete removal of screws may not be necessary.

  4. ZDGRQ43YWxSL1MtB
    ZDGRQ43YWxSL1MtB
    GT4oTcxNsHGygpM1
    3qLKAy5a1xHZqBVQ
    • Carefully separate the front and back panels by gently prying them apart. Start at the bottom of the phone (near the AC charger input).

    • Volume control button will be unsecured and may fall out as soon as the panels are separated.

    • Gentle force may be required to separate the panels at the top latch.

    • There are two wires connecting the front and back panels. Be careful not to rip these wires out when separating the panels.

  5. dE4AYjfXwGaTB65m
    dE4AYjfXwGaTB65m
    Jn21pLKVG1kdaRTd
    • Using your nails, tweezers, or any precise grabbing tool, pinch the antenna wire connector (clear plastic plug) and pull gently. It should pop out rather easily.

  6. bfDV3qkav2VLWLPE
    bfDV3qkav2VLWLPE
    KagyydEZ3naKAeAs
    KPOfBgF2dbXOrCZq

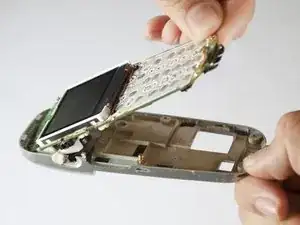

    • Gently remove the logic board and LCD screen from the back cover of the phone.

  7. cKpmvPCJngfEngFN

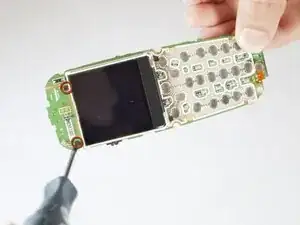

    • Remove the two screws above the LCD screen with a Phillips #00 screw driver. These connect to the white plastic cover in which the speaker is housed located on the reverse side of the logic board.

    • Make sure the white plastic cover remains in contact with the logic board while removing the screws.

  8. pcBB21gx5g6UHyww
    pcBB21gx5g6UHyww
    FEQ2DL4yhW61cxcl
    OtHYkcIMdWqXkjmM

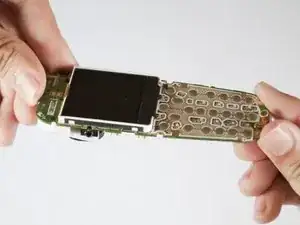

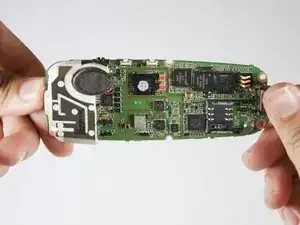

    • Rotate the logic board so that the LCD screen is face down.

    • Make sure the white plastic cover remains in contact with the logic board while it is being rotated.

    • Screws may fall out as the object is rotated.

  9. iKtEULIi6StwYOgi
    iKtEULIi6StwYOgi
    OCCpJsV1kyRlv4k6

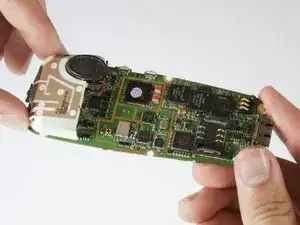

    • Gently begin to separate the white plastic cover from the logic board.

    • This cover will be connected by two small wires. Be sure not to break this connection.

  10. pmG4U1sns4Yc3rEU
    pmG4U1sns4Yc3rEU
    VjGyAn2tB6fttueh

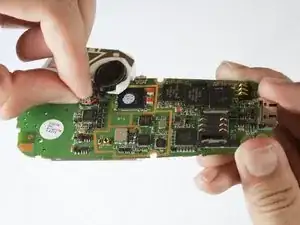

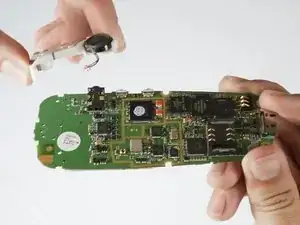

    • Locate the two wires (black and red) which connect the speaker to the logic board.

    • Using your nails, tweezers, or any precise grabbing tool, pinch the speaker connector (clear plastic plug that goes into the logic board) and pull gently. It should pop out easily.

    • Once the wires are disconnected and the screws removed, the white plastic cover can easily be removed from the logic board.

  11. GTybRPMrBXYLaT1e
    GTybRPMrBXYLaT1e
    GleTPRXqnuaPV4p4
    TpV1yuXBBG5uHZWH

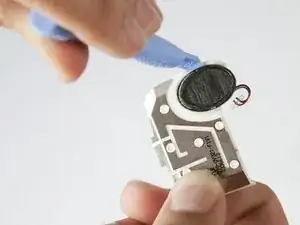

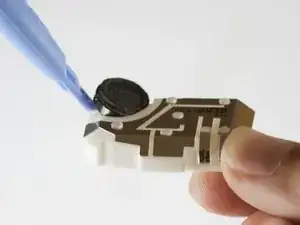

    • Use any small flat object to remove the speaker from the white plastic cover by wedging your tool between the speaker and the cover.

    • The speaker is attached by an adhesive so gently pry the speaker from the cover.

Abschluss

To reassemble your device, follow these instructions in reverse order.
