Einleitung
This is an easy DIY guide to replace the speaker. It involves removing the back cover, battery, and plastic cover over the motherboard. You will only need a screwdriver for this guide.
Werkzeuge
-
-

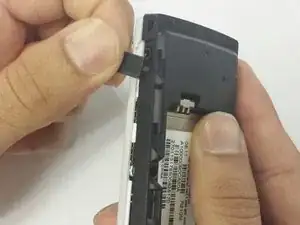

Find the triangle arrow on the back of the phone.
-

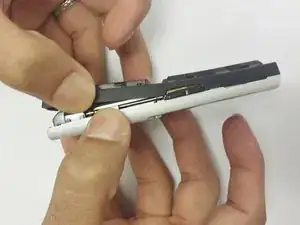

Use gentle, firm pressure to press down on the triangle arrow with your thumb until you hear a popping sound as the cover releases from the phone.
-

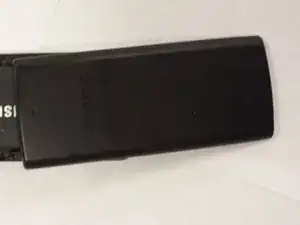

Slide the cover down to remove it. Set it aside.
-
-
-

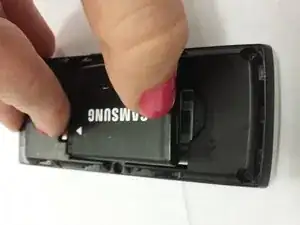

Once the battery is removed, use the Phillips #00 screwdriver to unscrew the 4 3/16" screws holding the black plastic cover in place.
-
-
-

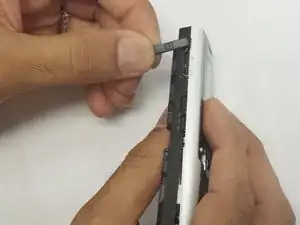

Remove the headphone cover from the left side and the volume cover from the right side of the black plastic cover.
-
-
-

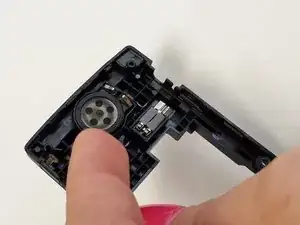

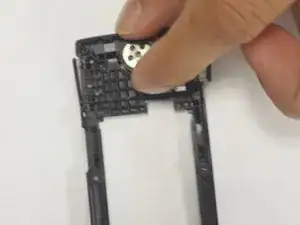

The speaker is located on the opposite side of the black plastic cover. Using your fingernail, pry the speaker out of the cover.
-
To reassemble your device, follow these instructions in reverse order.
