This is an easy DIY guide on how to replace the antenna. It involves removing the back cover, the battery and the plastic cover over the motherboard. You will need a screwdriver to remove screws and tweezers to remove the antenna.
Werkzeuge
-
-
Find the triangle arrow on the back of the phone.
-

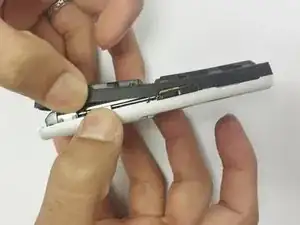

Use gentle, firm pressure to press down on the triangle arrow with your thumb until you hear a popping sound as the cover releases from the phone.
-
Slide the cover down to remove it. Set it aside.
-
-
-

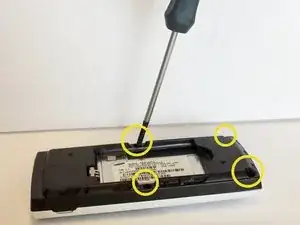

After removing the battery, unscrew the 4 3/16" screws on the black plastic cover with the Phillips #00 screwdriver.
-
-
-

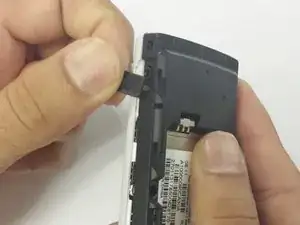

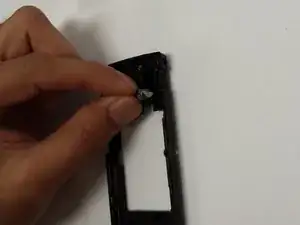

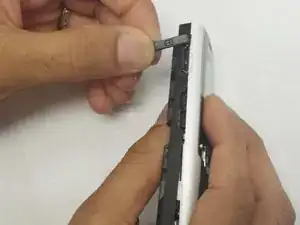

Remove the headphone cover from the left side and the volume cover from the right side of the phone.
-
-
-

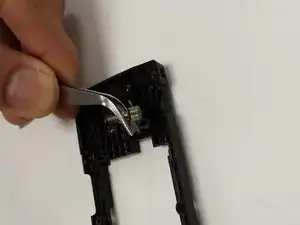

The antenna is located on the opposite side of the black plastic cover. Use the tweezers to remove the antenna.
-
-
-

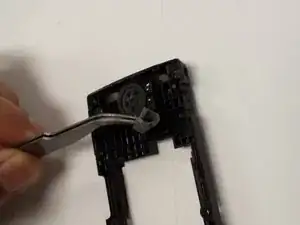

The gray rubber antenna cover will need to come out as well. Use the tweezers to remove the gray cover.
-
To reassemble your device, follow these instructions in reverse order.
