Einleitung

Use this guide to replace the keyboard if the keys do not work or jam or stick when they are pressed.

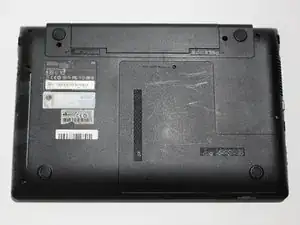

  1. gEJGuqbW1yGYyfor
    • Place the computer upside down, with the battery pack facing away from you.

  2. 3aTcee2ZxyWG2eIY
    3aTcee2ZxyWG2eIY
    pYgCjYF5iclJ1vSD

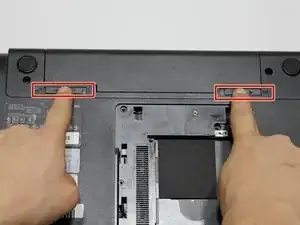

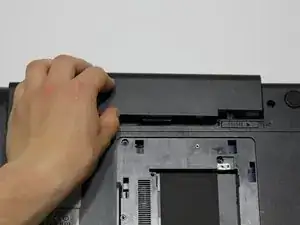

    • Remove the battery by pushing out the locks on either end then pushing the battery away from you.

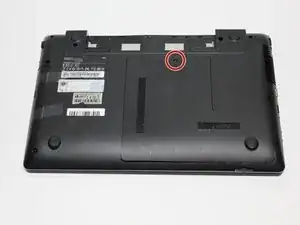

  3. i3gFPtZAAgJWpFex
    • Using the J0 Japanese Industrial Standard screwdriver, remove the 4.5mm screw on the ODD/HDD Memory panel.

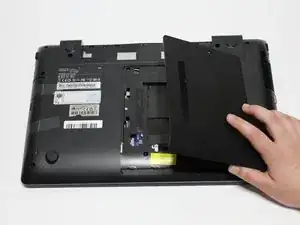

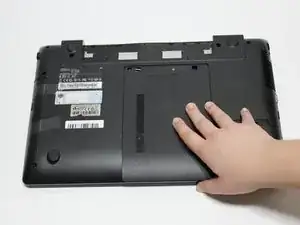

  4. O3I131bZflvTfg14
    O3I131bZflvTfg14
    tDIFFShEi5g3hAWf
    • Pull the panel towards you to release it, then lift it off the computer.

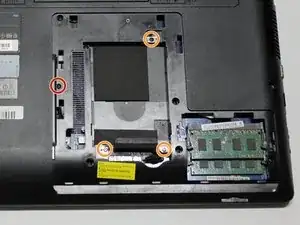

  5. JuQyGAfjRnBrF23a
    • Using the J0 Japanese Industrial Standard screwdriver, remove the 4.5mm screw next to the label “ODD."

    • Remove the three 4.5mm screws from around the memory drive nest.

  6. OANnSfNnKTPnfi5U
    • Using the J1 Japanese Industrial Standard screwdriver, remove the thirteen 9.5mm screws from the panel that cover the bottom of the computer.

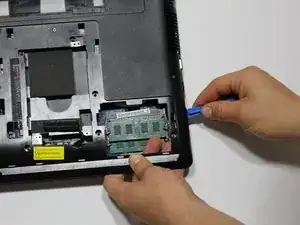

  7. wCyDy23OJhUbybKf
    wCyDy23OJhUbybKf
    NLfYaRURvO2ImXNV
    ViXrS2CFdkMEMHgw

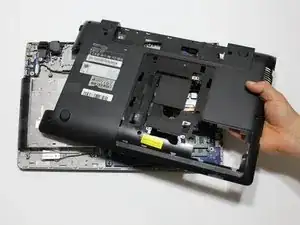

    • Begin removing the computer casing by prying beside the disk drive with the iFixit opening tool and the spudger, working counterclockwise.

    • Lift the panel from the computer.

  8. lqiBvYvGPs6DMELk
    • Remove the disc drive by pulling it towards the outside of the computer.

  9. Uc1c6TO2GfgMdMKg
    Uc1c6TO2GfgMdMKg
    BqkLAyWZXTJTi1hq

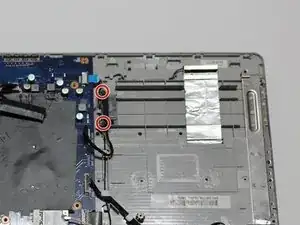

    • Using the J0 Japanese Industrial Standard screwdriver, remove the two 7mm screws that hold down the plug-in to the disc drive.

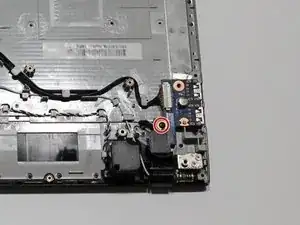

  10. CfmMMCGiQKWW52Xg
    • Using the J0 Japanese Industrial Standard screwdriver, remove the 3.5mm screw from the chip connected to the USB ports.

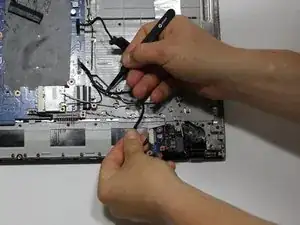

  11. T2o1idvraeEhROI6
    T2o1idvraeEhROI6
    YKlf6IHnhjYHtGw4

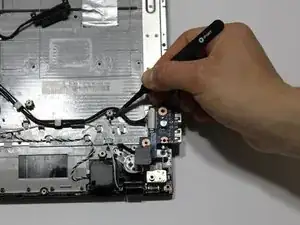

    • Using the tweezers, gently pry up the chip and ports, and unthread the wire from its holders, without crimping the wires.

  12. fRvoDi1BYV2avhig
    fRvoDi1BYV2avhig
    SpQD5cjTQKTZBoWQ

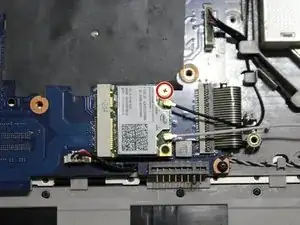

    • Using the J0 Japanese Industrial Standard screwdriver, remove the 4.5mm screw holding down the chip next to the power prongs where the battery connects.

    • Gently pull the chip from its connector.

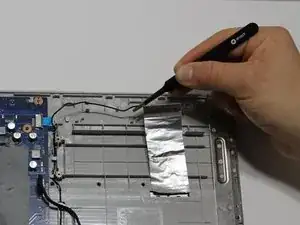

  13. UJAWvpHn16Qxs2XM
    UJAWvpHn16Qxs2XM
    iTBIHQxOBRuNCfGW

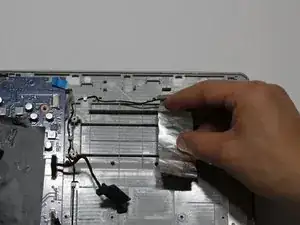

    • Gently pull up the aluminum strip from the top right corner of the computer and unthread the wire from the holders using the tweezers, without crimping the wire or tearing the aluminum.

  14. ZMw2NEZIVDZ6InJT

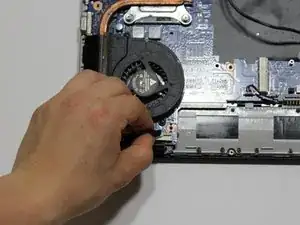

    • Disconnect the wire screen connection from its port by pulling upwards.

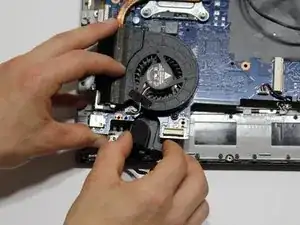

  15. LjdLPXDlymyA55M6
    LjdLPXDlymyA55M6
    XNMGACORraXLxC2q
    • Gently pull up the speaker towers from either end of the computer.

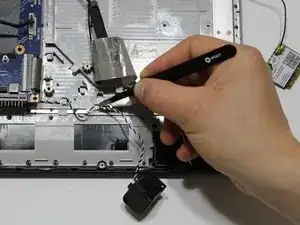

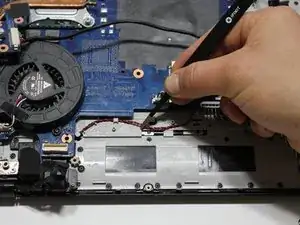

  16. EpNb2qx4W2FOemcJ
    EpNb2qx4W2FOemcJ
    pyiYjXBFYJgrJfT1
    • Using the blunt tweezers, unthread the wires that connect the motherboard to the speakers from their holders, without crimping the wires.

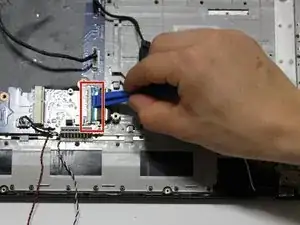

  17. HSshqOYHXEW1LfvV
    HSshqOYHXEW1LfvV
    k4FTaQTOb1wJKYoQ
    • Using the iFixit opening tool, gently pry up the plastic clasp that holds the keyboard power circuit down, and pull out the strip from the connection.

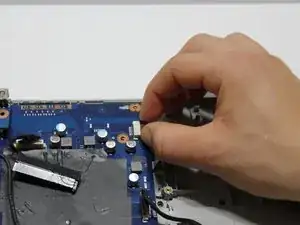

  18. URiPHUnvteHuQMhn
    • Pull out the plastic cover to release the Kotl strip, then pull out the strip.

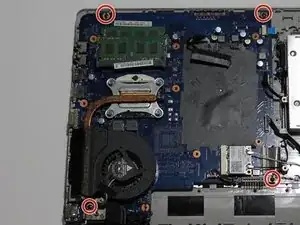

  19. NgUOFtgUF2QQnKsc
    NgUOFtgUF2QQnKsc
    p1eRwYdMZLVMX4vP

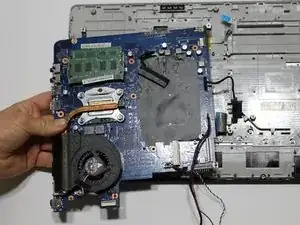

    • Using the J0 Japanese Industrial Standard screwdriver, remove the four 4.5mm screws from the corners of the motherboard.

    • Lift the motherboard from the computer.

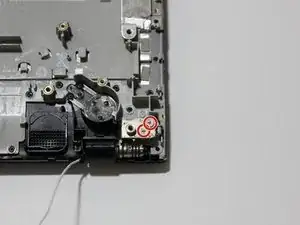

  20. 5tANWecZMmsrMvDB
    5tANWecZMmsrMvDB
    DFt4BXgNcMQweA4n
    • Using the J0 Japanese Industrial Standard screwdriver, remove the four 4.5mm screws on the attachments that connect the screen and keyboard, starting on the right corner, then moving to the left corner. There will be two screws on each bottom corner.

  21. kARuYRboAyQytdIU
    • Flip the computer over so that the front of the computer is facing you.

  22. nWu5iSDMmUtfgdf5
    • Open the computer screen until it disconnects from the keyboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
