Samsung Series 5 3G Chromebook Back Cover Replacement

Geschrieben von: Helder Avelino
  • Kommentare: 1
Samsung Series 5 3G Chromebook Back Cover Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

5 Minuten

Einleitung

Follow this guide if you want to replace the back cover of your Samsung Series 5 3G Chromebook. Removing the back cover exposes all the internal components of the laptop. Make sure your Chromebook is powered off before you begin.

  1. 4xLJPBynJZqhUJxB
    4xLJPBynJZqhUJxB
    PfqIuvskclvMSWir

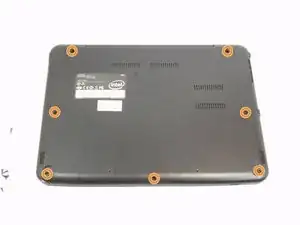

    • Place the laptop on a flat surface with the bottom side facing up.

    • Remove the rubber feet from the bottom of the panel using your fingernails.

    • Remove all the seven screws from the bottom panel.

  2. Q2BCpB2n2NxY1XEX
    Q2BCpB2n2NxY1XEX
    HGBdQhKixkiQQEOy

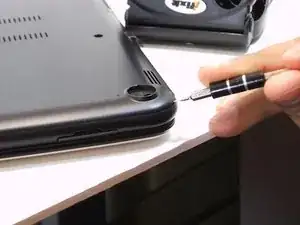

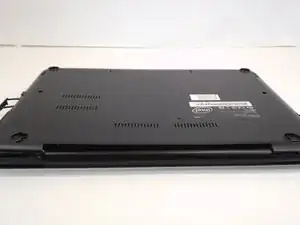

    • Loosen the back cover panel using a spudger.

  3. NIDCfZ236XRKwQSF
    NIDCfZ236XRKwQSF
    bAAiKRwEjgHTcA5S

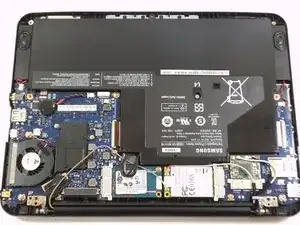

    • Once you work your way around, you can remove the panel.

Abschluss

To reassemble your device, follow these instructions in reverse order.
