Samsung Series 5 3G Chromebook Battery Replacement

Geschrieben von: Helder Avelino
  • Kommentare: 1
Samsung Series 5 3G Chromebook Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

15 - 30 Minuten

Einleitung

If your Samsung Series 5 3G Chromebook is not charging properly or it’s not turning on, you may need to replace the battery.

  1. 4xLJPBynJZqhUJxB
    4xLJPBynJZqhUJxB
    PfqIuvskclvMSWir

    • Place the laptop on a flat surface with the bottom side facing up.

    • Remove the rubber feet from the bottom of the panel using your fingernails.

    • Remove all the seven screws from the bottom panel.

  2. Q2BCpB2n2NxY1XEX
    Q2BCpB2n2NxY1XEX
    HGBdQhKixkiQQEOy

    • Loosen the back cover panel using a spudger.

  3. NIDCfZ236XRKwQSF
    NIDCfZ236XRKwQSF
    bAAiKRwEjgHTcA5S

    • Once you work your way around, you can remove the panel.

  4. uAdu2PJHSWpfjgBB
    uAdu2PJHSWpfjgBB
    miXF4Rs5heuw2JNT
    SQOqNYZ5RPQdh1gF

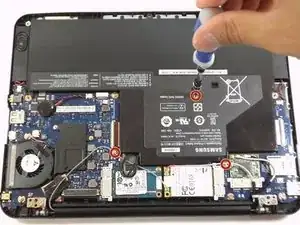

    • Remove three Phillips screws from the battery.

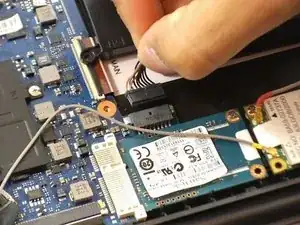

    • Disconnect the battery from the motherboard.

    • Lift the battery up and away from the laptop to remove it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
