Einleitung
This guide will show how to remove the covers from the underside of the laptop, remove the battery, and replace it with the new battery.
-
-

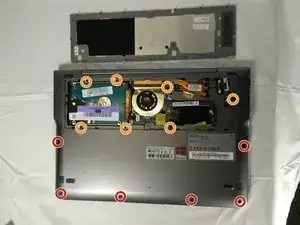

Power off the device. Remove the remaining screws holding the back cover in place:
-
Six 4.0 mm Phillips #00 screws.
-
Seven 6.7 mm Phillips #00 screws.
-
-
-

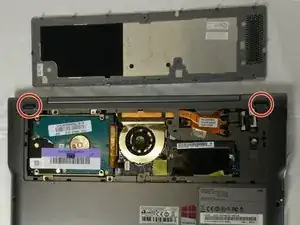

Remove the two rubber pads concealing the final bottom case screws.
-

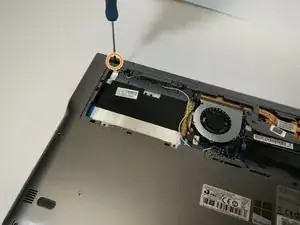

Remove the two 4 mm Phillips #00 screws found under these pads.
-
-
-

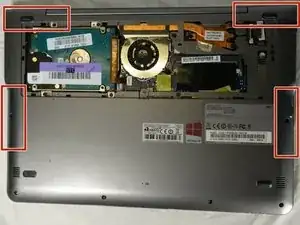

There are clips along the edges of the back cover that hold it in place. Be careful not to break these.
-
Remove the entire rest of the back cover.
-
-
-

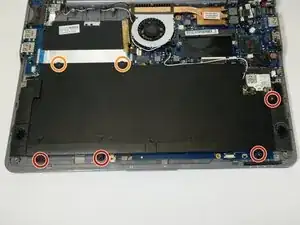

Remove the following Phillips 00 screws securing the battery:
-
Four 4.5 mm screws
-
Two 6.7 mm Phillips screws
-

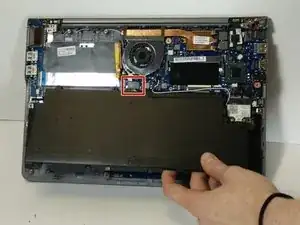

To reassemble your device, follow these instructions in reverse order.
2 Kommentare
I have one question.. does the laptop operate without the battery? I want to take it out and not replace it.. thanks for your time..Chris
Chris -
If you have a computer connected to a power supply that will still allow it to work.
The user manual recommends, before removing the cover:
"Insert an object, such as a paper clip, into the Emergency Hole at the bottom of the computer to cut the battery power. If the Power button does not work anymore, that means you successfully shut the power off."

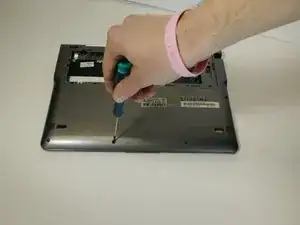

This seems to make sure power is completely off or something. The hole can be seen in the picture; it is located in the center, very near where the screwdriver is.
Pachi -
