Samsung Series 5 Ultrabook LCD Screen Replacement

Geschrieben von: Timothy
  • Kommentare: 5
Samsung Series 5 Ultrabook LCD Screen Replacement

Schwierigkeitsgrad

Difficult

Schritte

6

Zeitaufwand

45 Minuten

Einleitung

This guide will show how to fix a broken screen on the Samsung Series 5 Ultrabook. This can be difficult, and care should be used not to injure one's self on the old screen and not to break the new screen.

  1. XmSLObh6hPVdLwKL
    XmSLObh6hPVdLwKL
    OvYERRJYw5DAaCQn

    • Before starting, make sure the device is powered off and unplugged to prevent electrocution.

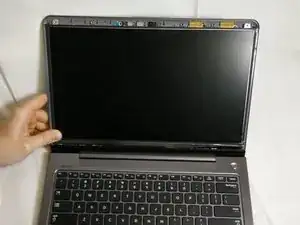

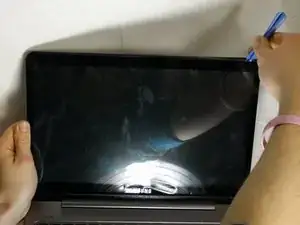

    • Using a sharp object, pry the screen away from the back cover. Make sure to pry over the rubber rather than underneath as this can cause screws to break out.

    • This step is difficult! See if a friend will help you take the cover off as it is easier with two sets of hands pulling.

    Hi

    What do I need to do in order to connect the new touch screen? Is there an adhesive material behind?

    ziflingus -

  2. UhM1nWJWHMdWSsDR
    UhM1nWJWHMdWSsDR
    LauZHLEfIeiPs1UN
    Z25OemTnKC2FFVPH

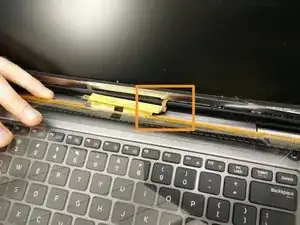

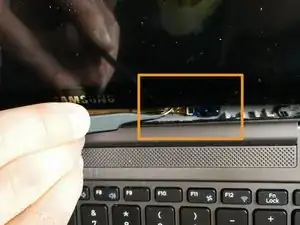

    • There is a small, skinny wire leading from the bottom of the touchscreen to the joint of the laptop. Remove carefully with tweezers.

    How to remove the bottom panel below the touch screen? I believe the wire is inside this panel.

    Jacob -

  3. wQdQCxwFTlLHBtOA

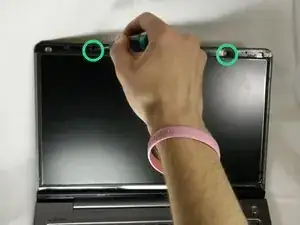

    • Remove the frame by unscrewing the two 3.7 mm screws at the top.

  4. VaEHTxkPR5Zn2JP5
    VaEHTxkPR5Zn2JP5
    YN6Knn2eoTkP5iBj

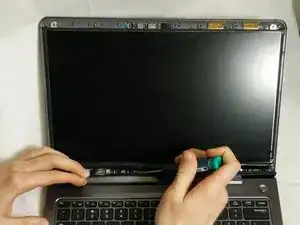

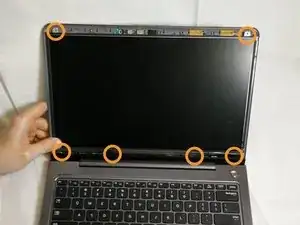

    • Unscrew the six 3.7 mm screws holding the screen in place.

  5. jRuuOZGgfWAnnSNN
    jRuuOZGgfWAnnSNN
    1dmyc6NEsocJQ42H
    hGQi2HZdqh1uUWGB

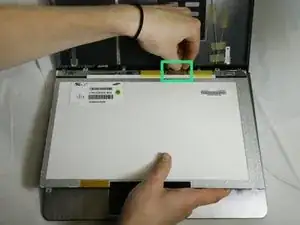

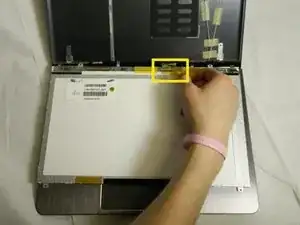

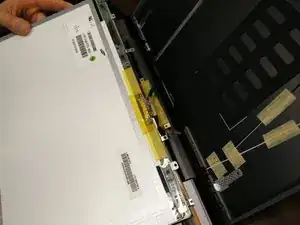

    • Pull the screen down and remove the tape over the video connection.

    • Remove the video cables from the screen. This is easiest with tweezers.

  6. DVkuou5Mt3XNXTa6

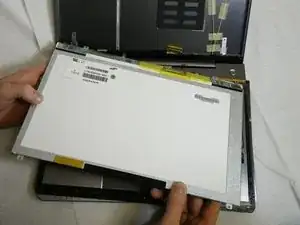

    • Remove the old screen from its location.

Abschluss

To reassemble your device, follow these instructions in reverse order.
