Samsung Series 9 NP900X3A Memory Card Replacement

Geschrieben von: Austin Gross
  • Kommentare: 0
Samsung Series 9 NP900X3A Memory Card Replacement

Schwierigkeitsgrad

Moderate

Schritte

12

Zeitaufwand

6 - 8 Minuten

Einleitung

If you are encountering issues such as unreadable memory card followed by a notification like “this card cannot be used” or card running slower than anticipated, these issues may constitute replacing the card.

  1. P4hnMYOl1Fv2vLwV

    • Locate the rubber feet at every corner of the laptop back panel. Use the ifixit prying tool, and break the adhesive between the rubber feet, and the case.

    • Screws securing the back panel underneath the adhesive will be exposed.

    • Removing the rubber feet will weaken the adhesive making reassembly difficult. Apply new adhesive if you choose to place the rubber feet back on to the device.

  2. xkTaRDrF2aSghSFJ

    • Use a Phillips #0 screwdriver to remove the ten 0.2mm screws from the bottom cover.

    • Keep track of the screws and their placement on the laptop. This will help make reassembly easier and more organized.

  3. opS3PMVRJTreYLEK
    opS3PMVRJTreYLEK
    6rkUPuEOIckoVVrl
    BPSw2KUlYA14t2AT

    • Find an opening on the back of the laptop. Use the plastic prying tool to help pry open the back panel of the laptop.

    • Use both hands when removing the back case cover. Too much force will bend the cover making it difficult to reassemble.

  4. yYNFXvB2KRtqTo2J

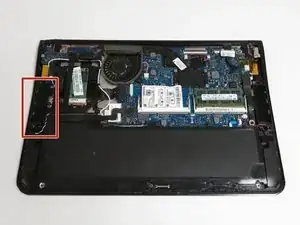

    • Locate the AUX and USB port on the left side of the laptop.

  5. JiGr3Hnh1SXWrkVJ

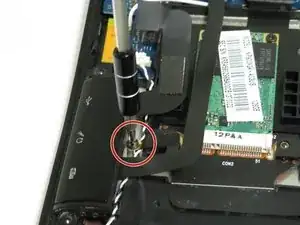

    • Remove the one 0.1mm screw using a Phillips #0 Screwdriver from the laptop.

    • Keep track of the 0.1mm screws for reassembly later.

  6. SqOvblpkX6pmmpdV

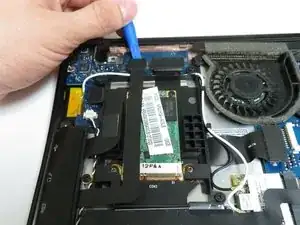

    • Use a plastic prying tool to remove the top connector of the port from the motherboard.

    • This should come out very easily and allow access to the Memory card.

  7. sOqyCgFiNTMhScJH

    • Remove the second connector from the motherboard using the prying tool.

    • This should come out very easily, and allow access to the Memory card.

  8. sZRDb5OILjuOMuMw
    sZRDb5OILjuOMuMw
    DX1RAW1oSTJQTU2Z

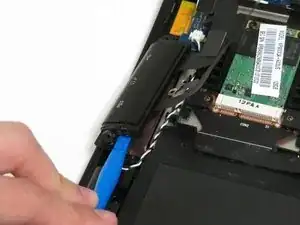

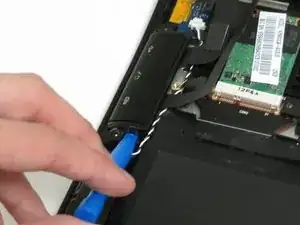

    • Find an opening on the side of the port and pry the USB and AUX port out of the laptop with the prying tool.

  9. 1wqyOONv612NqAeZ

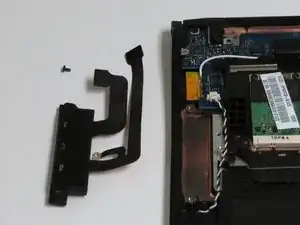

    • Remove and place the port outside of the laptop. You are free to install your new USB and HDMI ports.

  10. NDYyRnBnXAldW6dU

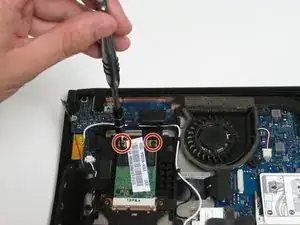

    • Using your Phillips #0 Screwdriver, unscrew the 0.1mm screws securing the memory card in place at the top.

    • Remember to keep track of the screws for reassembly.

  11. NUWDXL4cuFNTuCsX
    NUWDXL4cuFNTuCsX
    QhkXmB41kwBDWREM
    jk65pOON4JlUCHRP

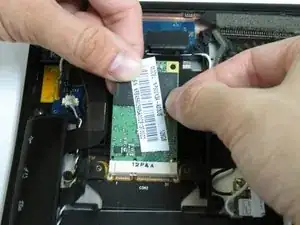

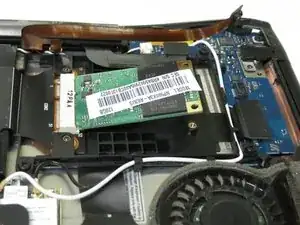

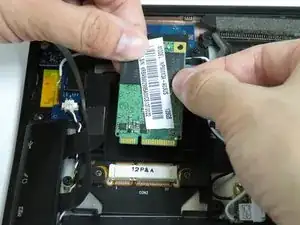

    • After removing the screws, your card should angle upward making for an easier removal.

    • Using both hands, gently lift the card out of its socket in the direction away from yourself.

    • Use caution when removing the card, bending the pins will damage the socket and your ability to reuse the memory card if you plan to.

  12. fU3n6kJDE4BlIGgP

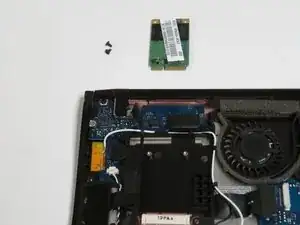

    • Replace the the card with a new compatible memory card.

    • To install your new memory card, follow these steps in reverse order.

Abschluss

To reassemble your device, follow these instructions in reverse order.
