In this guide, we will be showing you how to replace the display on the Samsung Series 9 NP900X4D-A03US. We begin by removing the adhesive frame from the display, unscrewing the screws holding the display in place, and detaching the cable that keeps it intact.
-
-

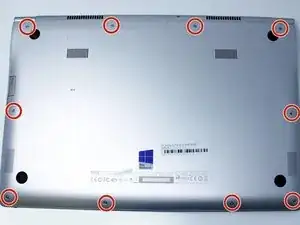

Use the screwdriver to remove the ten 2.5mm Phillips #00 screws.
-

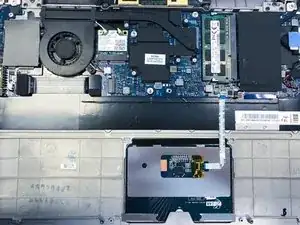

Use an iFixit opening tool to carefully remove the back panel from the laptop.
-
-
-

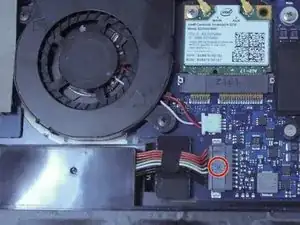

Lightly place some pressure into the highlighted cavity on the battery's outlet plug with a spudger.
-
Carefully remove the wires from the outlet plug.
-
Now you will be able to remove the battery from its place.
-
-
-

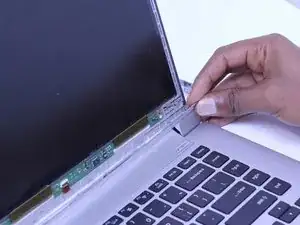

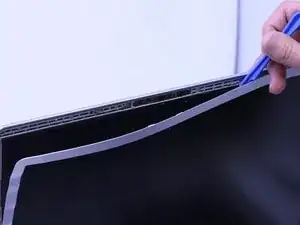

Using tweezers, gently remove the adhesive surrounding the cover. At the same time, gently pry the cover off of the display using an iFixit opening tool.
-

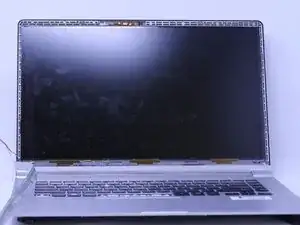

Gently place the cover to the left, as a wire is still attached.
-
-
-

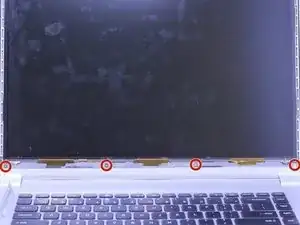

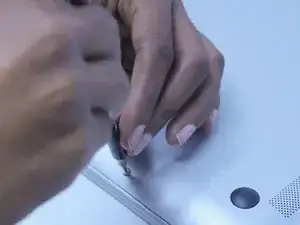

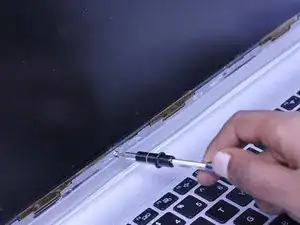

Use the Phillips #00 screwdriver to unscrew the four 2.5mm screws.
-
Gently remove the tabs from each corner.
-
-
-

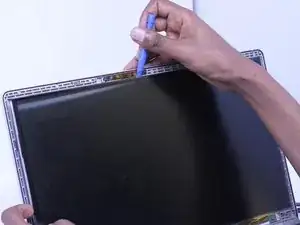

Use the iFixit opening tool to detach the screen from the frame.
-

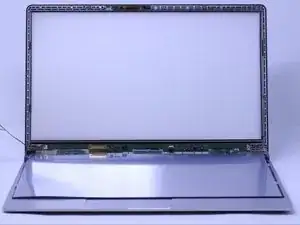

Slowly lay the screen down on the keyboard.
-
-
-

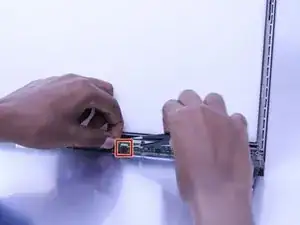

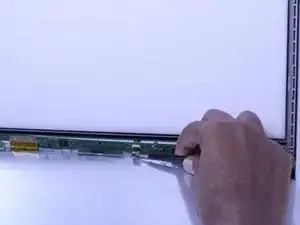

Using tweezers, slowly remove the connected wire from the display.
-
Gently remove the display from the device.
-
To reassemble your device, follow these instructions in reverse order.
