Samsung Series 9 NP900X4D-A03US WiFi Card Replacement

Geschrieben von: Aimee Young
  • Kommentare: 1
Samsung Series 9 NP900X4D-A03US WiFi Card Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

15 - 20 Minuten

Einleitung

The WiFi card enables you to access the internet wirelessly and on-the-go, instead of being connected to an Ethernet cable. If your WiFi card is broken or malfunctioning, it will need to be replaced.

  1. KlvmJpTG4YEIwL5J

    • Use the screwdriver to remove the ten 2.5mm Phillips #00 screws.

    • Remove the back panel of the laptop.

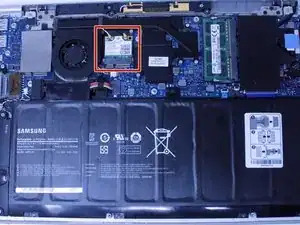

  2. c2N3mCFkCtH4EZdC

    • Locate the WiFi card once you've removed the back panel.

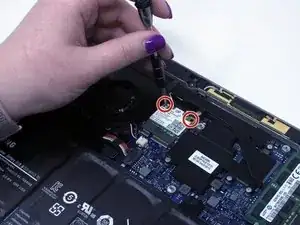

  3. 4RK4DGXpPZNEMRJS

    • Remove the two 2.5 mm Phillips #00 screws.

  4. 1pH5QdMvNAI5hPVm

    • Remove the two wires connected to the WiFi card using a nylon spudger.

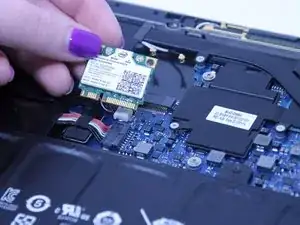

  5. 3YpmE4JBRmZDN4rt

    • Gently lift up the WiFi card to remove it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
