Samsung SmartCam HD Speaker Replacement

Geschrieben von: Pranab Baidya
  • Kommentare: 1
Samsung SmartCam HD Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

15 - 30 Minuten

Einleitung

Steps how to replace the SmartCam Speakers incase of malfunction.

  1. SJKRFQyDt4Laeiqa
    SJKRFQyDt4Laeiqa
    Qi2Pk14XLQ5aFG1a
    JNE6kHMBaZybeGRG

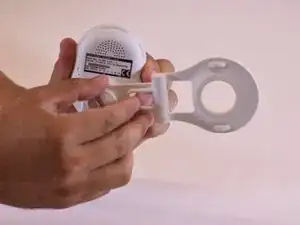

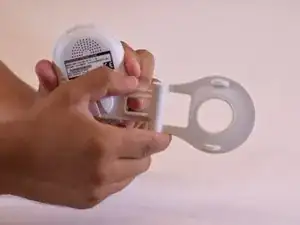

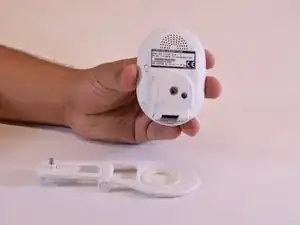

    • Remove the mount.

    • Use the mount replacement guide if necessary to take the mount off.

  2. Y1HNtHKfvwgfIDgp
    Y1HNtHKfvwgfIDgp
    VoAKW3L5HTlRDcIe

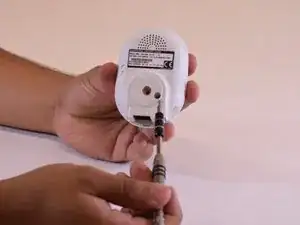

    • Unscrew the screw next to the mount holder.

  3. cFIj1lMVxOUYfErU
    cFIj1lMVxOUYfErU
    c2TPWRdAKdv5Jb5g
    N1uOXsdPZuQ5jHEu

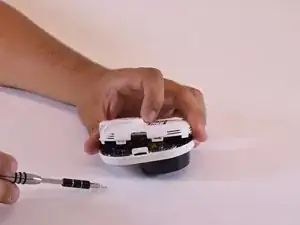

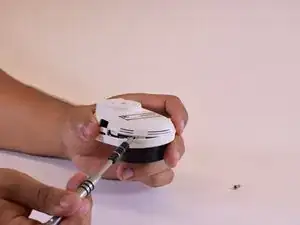

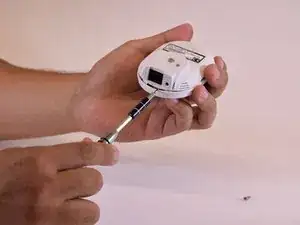

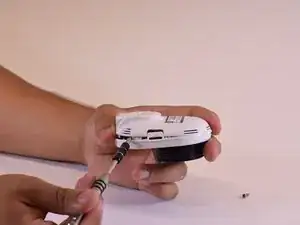

    • At the bottom of the SmartCam there is a tab that you can stick a spudger r in.

    • Once the spudger is in, gently pry it open.

    • Work your way around the SmartCam with the spudger loosing 8 clips.

    • Buttons may fall out, but can be reinserted easily.

  4. eHtXFrFbKdWbQ3kQ
    eHtXFrFbKdWbQ3kQ
    fACjkl2CC4YGEleq

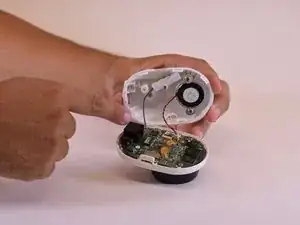

    • Gently remover the cover.

    • Beware of the wires connected to the camera.

  5. BripGUtGVoQFXdBA
    BripGUtGVoQFXdBA
    pGjflnheN4SKxPWy
    GuQ2DVdGSJmXqnOX

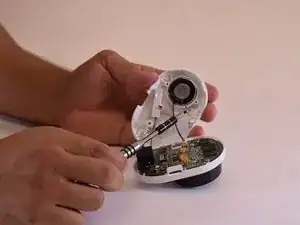

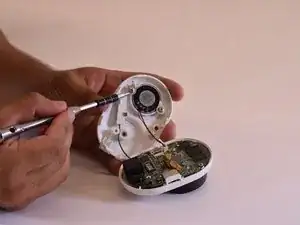

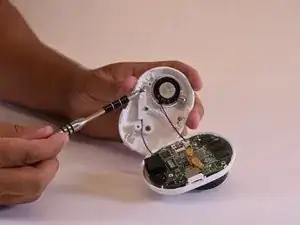

    • The speaker should be attached to the cover with red and black wires going to the main board.

    • Unscrew the two screws holding the speaker in place.

  6. TmyngWtWcvKJZSjo
    TmyngWtWcvKJZSjo
    rLJg6uR2yQQVJhGm
    XKAYIDiPcJbWqZ5s

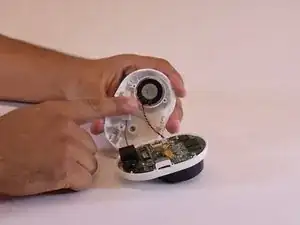

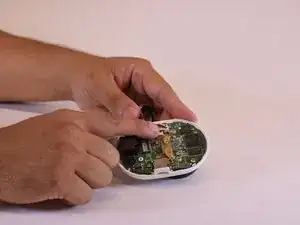

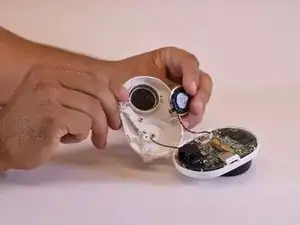

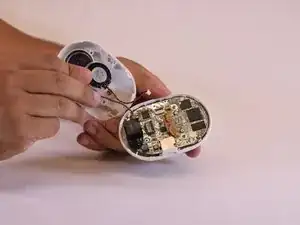

    • Gently take the speaker out of the cover.

    • Take out the red and black wires from a small plug-in on the main board.

Abschluss

To reassemble your device, follow these instructions in reverse order.
