Samsung T139 Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

10 - 15 Minuten

Einleitung

If you are having problems with the screen on your Samsung T139, use this guide to replace it.

  1. gxubgCTUAhLSoCeY
    gxubgCTUAhLSoCeY
    VyEoyPEsZ1qLJgFt
    ZLcwFCJg5DXsWFUb

    • Power off your phone before beginning disassembly

    • Apply pressure to the back cover and slide towards the base

  2. SWEDBMYQusS1HNeO
    SWEDBMYQusS1HNeO
    vTaFdhB1GH6lFKDk

    • With a plastic opening tool, lift and remove the battery

  3. cnIDxat6FmmvGiRX
    cnIDxat6FmmvGiRX
    6nfuaUmFiV6JAhdL

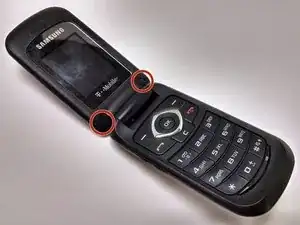

    • Remove stickers covering screws

  4. FafRsEn3HwUOcVra
    FafRsEn3HwUOcVra
    TLYykKhmVQJy4XK4

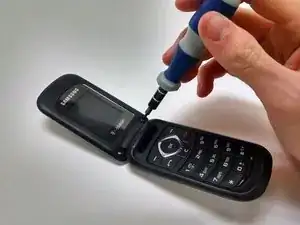

    • Remove the two Phillips 1.0mm #0 screws

  5. GG2SQfapaftLKDNe
    GG2SQfapaftLKDNe
    ultUGUWZvUjqKfAF
    jS5HemGuMNpX53SO

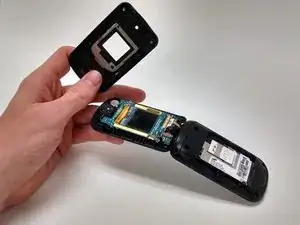

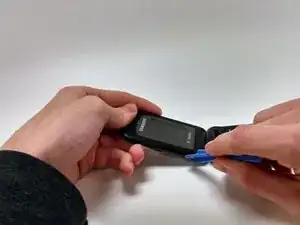

    • Using plastic opening tool, work around the face plate until it pops off

  6. MkbbX6dBeGvujYlJ
    MkbbX6dBeGvujYlJ
    AaxfPYCOu2Y1UTCI

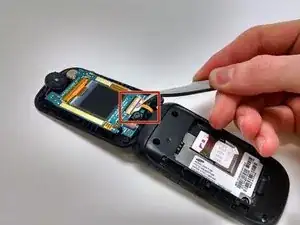

    • Gently pull away ribbon cord

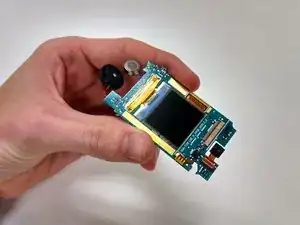

    • Lift away screen circuit board

Abschluss

To reassemble your device, follow these instructions in reverse order.
