Samsung USB Charger

Geschrieben von: harsha
Veröffentlicht: 10/09/13
  • Kommentare: 9

Samsung USB Charger

Veröffentlicht: 10/09/13

Teardown

Einleitung

I bought a sgs3. it have an oem 700mA charger. and i also want to buy a 2A sgs 4 oem charger. and i bought a new oem one from ebay. they say it is oem one. after it arrive i check it self. itz clearly see its an oem one. charging rate is also faster than

  1. qFxLGUYX1JLMS4Eh
    qFxLGUYX1JLMS4Eh
    Z5bYOYhe3oEIDnkX
    dxNPxRIVyNOIBZSU

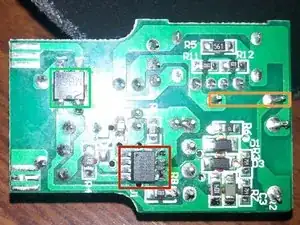

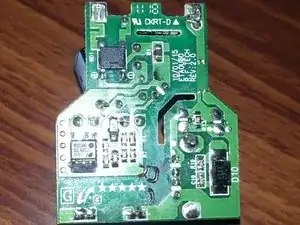

    • Samsung OEM LOGO and the Date of Manufacturing OEM Chager

    • Control IC SC1097DG OEM PL3539 For Fake

    • Bridge Rectifier TB10S for OEM MB6S For fake

    • Scotty Diode 5A for OEM 2A for Fake

    • Fuse Resistor

  2. SfiiAKjPlPbF2InK
    SfiiAKjPlPbF2InK
    TUVtG6RIsZojGT5n
    eujYtfsEiUfHTO1n

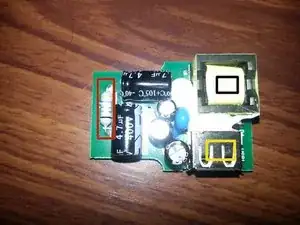

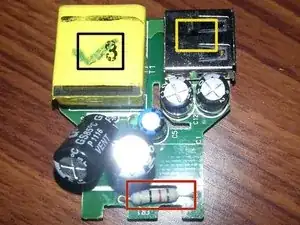

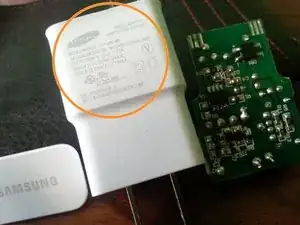

    • Fake Samsung But also Best Quality. its give 1.3A

    • Fully Isolated Transformer in OEM one

    • USB Port

    • Fused Resistor for Safety

    how did you open the top of the charger?

    rsramos18 -

    how did he open the top of the charger ?

    lilouss -

    How did you open it????

    anonymous 1107 -

  3. ICOhgNVGv5d3W3pg
    ICOhgNVGv5d3W3pg
    CNoGim3HIlBPxULP
    OW46lku2BnHhmGYq

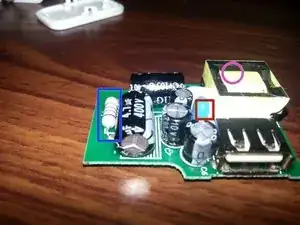

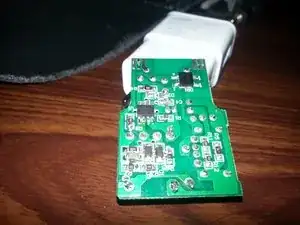

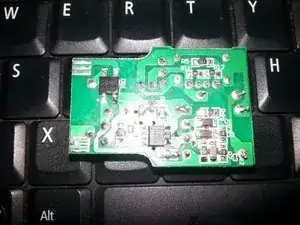

    • Blue component is a special "Y" capacitor to reduce interference. (2A chager)

    • Transformer not fully isolated than OEM one

    • Fuse Resistor

  4. lTeEuZymJhDBvYhJ
    lTeEuZymJhDBvYhJ
    uHkkuGd3NstOuyFs

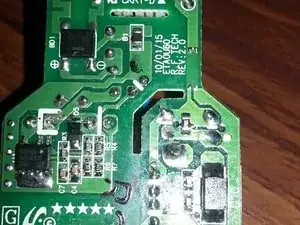

    • Always Buy OEM Genuine

    • Disassembled By Harsha Jayamanna

    • END OF THE TEARDOWN...

    • Thanks For Watching
