Einleitung

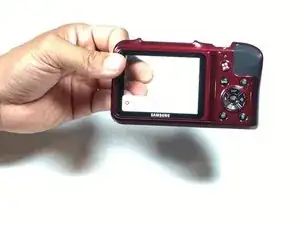

Use this guide to replace the rear panel and LCD screen cover of the Samsung WB1100F. The screen cover is part of the rear body of the camera. The cover is highly susceptible to scratching and cracking.
Werkzeuge
-
-
Remove six 1.2 mm Phillips #00 screws connected to the tripod dock and adjacent screws.
-

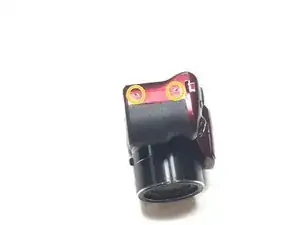

Remove six 1.2 mm Phillips #00 screws from the side of the camera.
-
-
-
Using the flat end of a spudger, loosen the connection between the back panel and the device. Remove the back panel using your hands.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
