Samsung WB1100F LCD Screen Replacement

Geschrieben von: Jesse Lindsey
  • Kommentare: 0
Samsung WB1100F LCD Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

20 Minuten

Einleitung

This guide will show you how to replace the LCD Panel on the Samsung WB1100F. It will show you a step by step replacement guide of how to replace the LCD Panel.

  1. 1GOFQ1iPE6CvGwWP
    1GOFQ1iPE6CvGwWP
    mip6kbtssVF6s3iS

    • Remove six 1.2 mm Phillips #00 screws connected to the tripod dock and adjacent screws.

    • Remove six 1.2 mm Phillips #00 screws from the side of the camera.

  2. vhEqvkRfutANE1ol
    vhEqvkRfutANE1ol
    FU4muUxogpJYRexb

    • Use a plastic opening tool or spudger if available.

    • Using the flat end of a spudger, loosen the connection between the back panel and the device. Remove the back panel using your hands.

  3. jZfmYvqA6hCq2pMJ
    jZfmYvqA6hCq2pMJ
    hbkASvrK1yTlFeWk

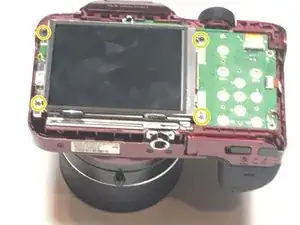

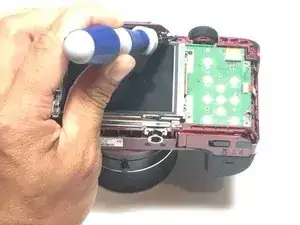

    • Remove four 1.2 mm Phillips #1 screws connected to the LCD screen.

  4. 1MpAqkqrLLKRZZbH
    1MpAqkqrLLKRZZbH
    jMPPVDUASOOAjiIJ
    2tANjEoC6kEcnTs5

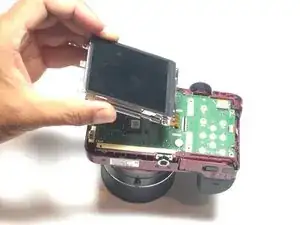

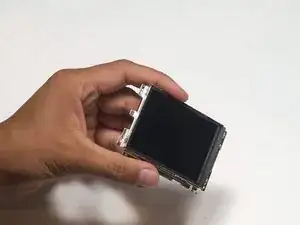

    • Flip the LCD screen over to reveal the display cable.

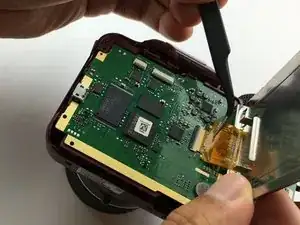

    • Use the tip of a spudger or your fingernail to flip up the small retaining flap on the display cable ZIF connector.

    • Be sure you are prying up on the hinged retaining flap, not the connector itself.

    • Using a pair of tweezers, remove the ribbon cable from its socket on the motherboard.

    • The white line on this ribbon cable marks the edge of the connection area. To reinstall, insert the cable into the connector up to this line, and then close the retaining flap. If the cable doesn’t insert easily up to (or very near to) this line, it’s probably misaligned and needs to be gently removed and repositioned.

Abschluss

To reassemble your device, follow these instructions in reverse order.
