Samsung WB2200F Record Button Replacement

Remove the 6mm screws located on the bottom and sides of the camera using the using the screw driver with the JIS size 000 head.

Remove the two 6mm screws located underneath the battery cover using the same screw driver with the JIS size 000 head.

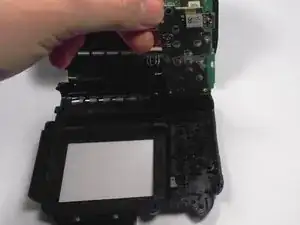

Carefully pry the face-plate away from the body of the camera, starting from the battery compartment. It should come off without too much trouble, although it may require force.

Open up the camera by removing the four 6 mm screws, that hold down the metal cover, using the screw driver with the JIS size 000 head.

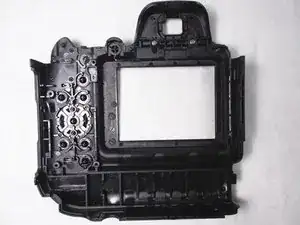

Gently lift off the metal cover.

Clean out any dust or debris from the button interface.

Replace faulty button.
