Samsung WB350F Menu/Control Buttons Replacement

Geschrieben von: Taylor Joubert
  • Kommentare: 1
Samsung WB350F Menu/Control Buttons Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

Keine Schätzung

Einleitung

If your control/menu buttons aren't working on your camera, this guide will walk you through replacing them.

  1. ltEJ6Kgq6HktjXp3
    ltEJ6Kgq6HktjXp3
    oKEK4yyCX4CACMdu
    XEqdAFGROu1RwnKU

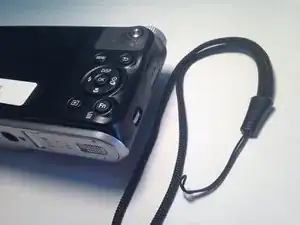

    • Remove the wristlet strap.

    • If you have difficulties use your plastic spudger. If you don't have a plastic spudger, you can also use a pen/pencil.

  2. tSJ5itNLyrUQ3Gyf
    tSJ5itNLyrUQ3Gyf
    RrJrsIqtZY4gVi4W
    UtxiIIkf5VD2JIhK

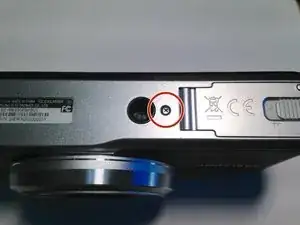

    • Remove five 3.2 mm screws with a Phillips #000 Screwdriver.

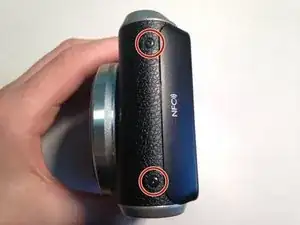

    • There is one silver screw on the bottom and two black screws on each side.

    • Keep the screws together for an easier re-assembly later.

  3. 6ObcFJgUoMfmwRWI
    6ObcFJgUoMfmwRWI
    GMWMxkLUbCdGeAAb
    pmjtTN12BVdwgFXS

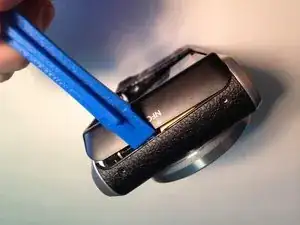

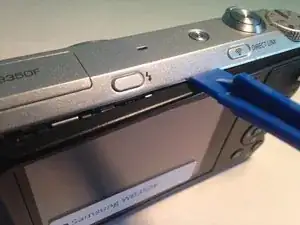

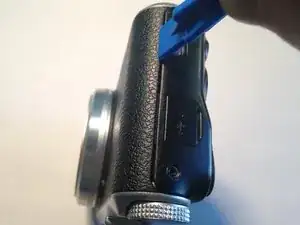

    • Open the case of the camera using your plastic opening tool.

    • Start on each end, working the tool into the opening and popping the casing up. Then work your way down the longer sides (top and bottom).

    • If you don’t have plastic opening tools, any flat plastic object, like a used gift card, can be used as an improvised alternative.

  4. PersCTuUvDLmjgwK

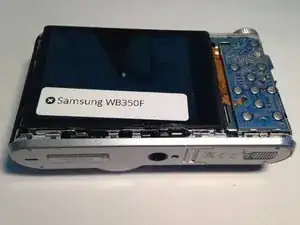

    • Remove the plastic casing, exposing the inner workings of the camera.

  5. rWdsQuqJPgOyyYeB
    rWdsQuqJPgOyyYeB
    X1LNkNecT3asyrLc

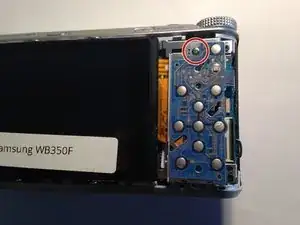

    • Using your Phillips #000 Screwdriver, remove one 3.2 mm screw above the menu buttons panel.

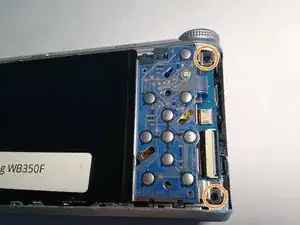

    • Next, remove the two 3.2 mm Phillips #000 screws to the left of the menu buttons panel.

  6. T2bo14b4TSfGOpZ2

    • Move the menu button panel to the right as well as the screen.

    • Be careful because each are connected to the camera by a ribbon.

  7. 1CAWFXQFEnBlmBae

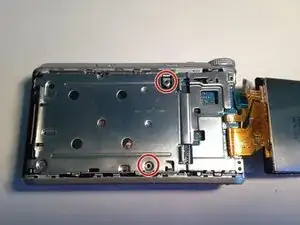

    • Remove two more 3.2 mm screws on the silver panel using your Phillips #000 Screwdriver.

  8. cWbXXObkbqZrbt3g
    cWbXXObkbqZrbt3g
    vJxSQTRTV13alNoj

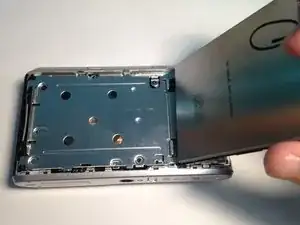

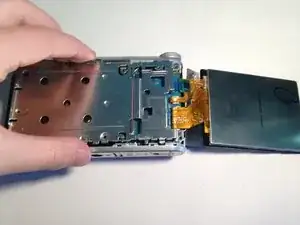

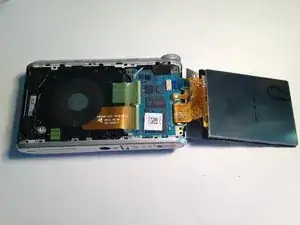

    • Remove the silver panel.

  9. fBAYPhcK3dmXYSGv
    fBAYPhcK3dmXYSGv
    BNP4U5S4ahLmhoP1

    • Flip the screen back over.

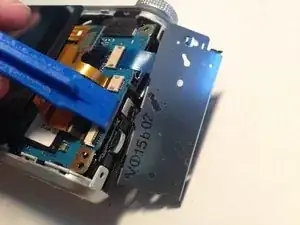

    • Using the plastic open tool, flip open the black retaining plastic piece holding the larger ribbon in place.

  10. Y3xYXoYO1jWEklfT
    Y3xYXoYO1jWEklfT
    fVV3QQlMxCYNJ2iw

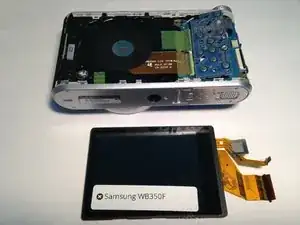

    • Carefully detach both ribbons by gently pulling one at a time.

    • The thinner ribbon isn't secured with a connector and you are able to pull it straight out.

    • Be sure to pull gently as you do not want to break either ribbon.

  11. i4UECeuJUtK3YfD4
    i4UECeuJUtK3YfD4
    Zk6Ds6MOoJDjKVKr
    KqBVkYWmMwwLnndh

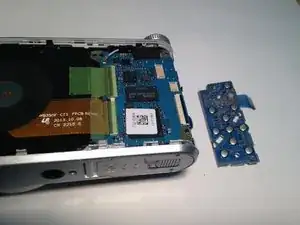

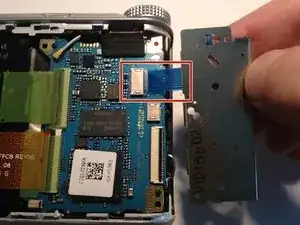

    • Gently pull the ribbon in order to remove the menu/control button panel.

    • The ribbon isn't secured with a connector and you are able to pull it straight out.

    Then what? Replace the panel with a new one? Check buttons for ?? Great instructions to this point. We have one button that wont work, the button the the lower left, preview picture button. Do I need a whole new panel to get this one to make it work? Anyone ever go through the steps, clean panel, replace, and have that work?

    segz -

Abschluss

To reassemble your device, follow these instructions in reverse order.
