Einleitung

This guide will give user step by step instructions on how to replace damaged or scratched screen of the camera.

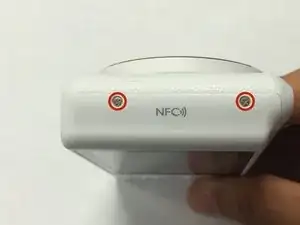

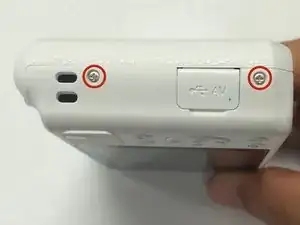

  1. iYNvlnHY1BAxiwEf
    iYNvlnHY1BAxiwEf
    FYYR2aRAJFHgwTnN
    hb2NhSocZoerv2p2

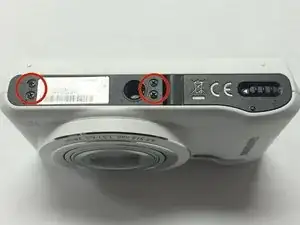

    • The first thing to do will be unscrew all the screws using Phillips #000 Screwdriver.

    • Keep all the screws in order. Black screws goes under the bottom of camera, and the silver screws goes on the sides and inside of the camera.

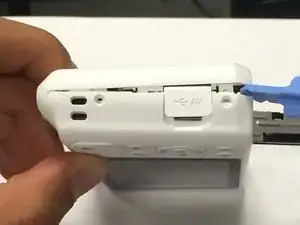

  2. C3o4dXkeBdTomYmT
    C3o4dXkeBdTomYmT
    WUG2XUoQ2dWoowCn
    • Using the spudger, and plastic opening tool open the casing of camera.

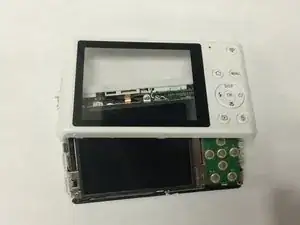

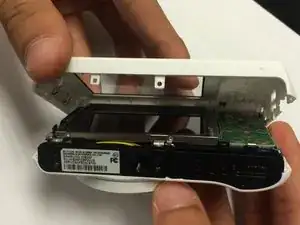

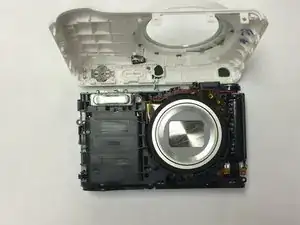

  3. ga33NGWX2VNjOAEE
    ga33NGWX2VNjOAEE
    YuZbxnofqJkyAHiv
    GKVtJkqEOKWtUE2E
    • Once you open the camera case, you will be able to work on any part of the camera.

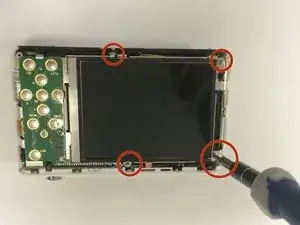

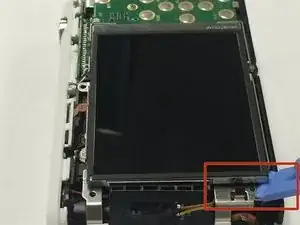

  4. woSJjdIEC3rJdNOS
    woSJjdIEC3rJdNOS
    sMni3WhKpdxTUbyI
    ri5Mge2IaU1IO3p2
    • Open all the screws around the screen using Phillips #000 Screwdriver.

  5. FQRFy3jd52OuXZDc
    FQRFy3jd52OuXZDc
    FGHg5vEKZDhkekSQ
    • First disconnect the ribbon by using spudger.

    • Carefully take out the old screen and replace it with a new screen.

    • Be careful when you pull out the screen, because there is a ribbon attached to the panel.

Abschluss

To reassemble your device, follow these instructions in reverse order.
