Samsung WB850F Control Panel Replacement

Use the Phillips #0 screwdriver to remove the six outside screws. Orientation is from the front of the camera.

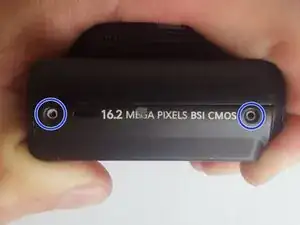

2 screws are located on the bottom.

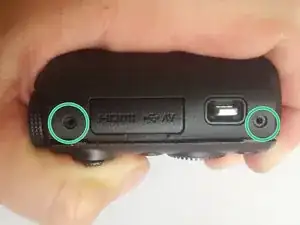

2 screws are located on the left side. (HDMI port)

2 screws are located on the right side of the camera. (Opposite HDMI side)

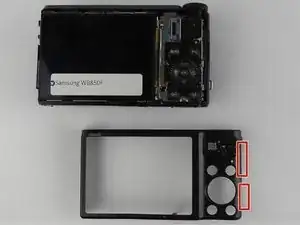

To remove the back screen case, use the blue opening tool to open the case up from the right side.

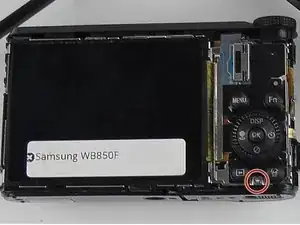

Use screwdriver to remove control panel screw.

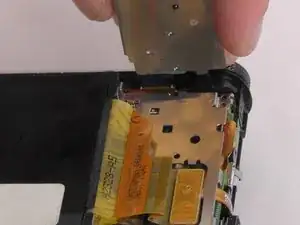

Lift up control panel from the side where the screw was just removed.
