Einleitung
This guide will give user step by step instructions on how to replace the screen of the camera.
Ersatzteile
-
-

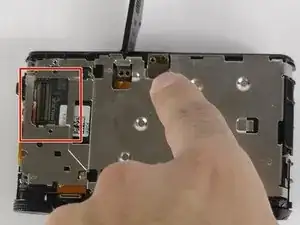

First remove the battery and SD Card
-
Then use the screwdriver to remove the 6 screws that need to be removed to take off the outer case.
-

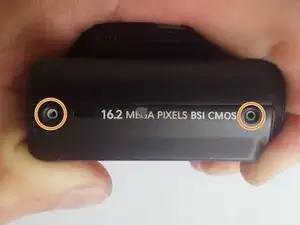

2 screws are located on the bottom.
-

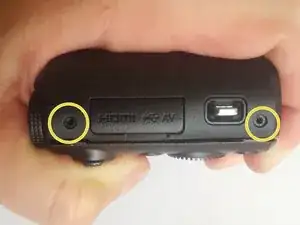

2 screws are located on the left side (near the HDMI port).
-
2 screws are located on the right side (opposite side of the HDMI port).
-
-
-
Once the screws are removed, use the blue opening tool to open the back case from the sides - it should come off easily.
-
-
-
Use the screwdriver to remove the small silver screw holding down the control panel (located on the bottom right next to the screen).
-
Use the blue opening tool to lift up the control panel from where the screw was just removed.
-
-
-

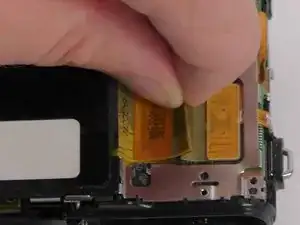

Use the tweezers to gently pull the yellow control board ribbon cable out of its connector.
-
The display cable stands straight up and pops out easily. Pull up on it to remove the screen from the camera.
-
-
-
Connect the new screen by gently pressing the display cable on to its connector (on the motherboard).
-
To reassemble your device, follow these instructions in reverse order.
