Sandisk Sansa m230 Series mp3 player USB Jack Replacement

Geschrieben von: James Thorne
  • Kommentare: 1
Sandisk Sansa m230 Series mp3 player USB Jack Replacement

Schwierigkeitsgrad

Moderate

Schritte

14

Zeitaufwand

15 Minuten

Einleitung

This guide can help those that are experiencing difficulty with connecting their device to a computer via a USB cable.

  1. UyPItYVvKFIkOVBX

    • Remove the battery compartment cover.

    • Remove the battery.

  2. SMFxEv5NWyRVrWXQ

    • Locate and remove the screw next to the battery compartment lid.

  3. UwaiNMLyglrfXhGb

    • Locate the interlocking pegs along the seam of the device's casings.

    • Gently pry the pegs apart one at a time, working your way around the case.

    • Be careful when prying apart the pegs: they are made of plastic and may break.

  4. anNXVYYrKvmuZ1vv

    • The battery contact springs may prevent the case from separating.

    • Push the battery contact springs down through the hole in the case.

  5. OLGMtTNU2pjUjTLH

    • The casing protecting the USB and headphone jacks must be removed.

    • Locate and gently pry apart the two interlocking clips holding it in place.

    • The outer casings may now be removed and the MP3 player should separate.

  6. Eiog1RsVGe3Fakc5

    • You now have access to all components found on the inside of the device!

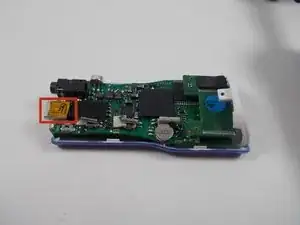

  7. mXEH1SgPWMtXkrCO

    • Locate USB jack on the motherboard.

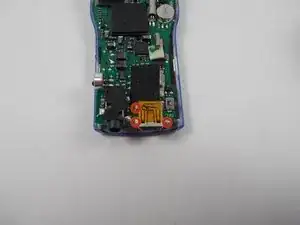

  8. ttMLHoDVwV2Qjlod

    • Find the soldered connections shared between the USB jack and the motherboard.

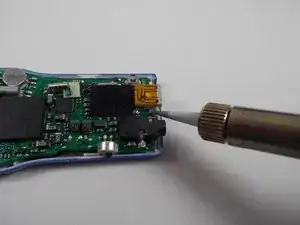

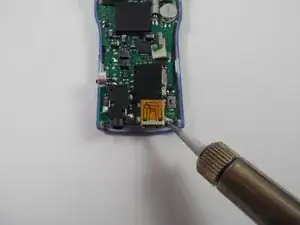

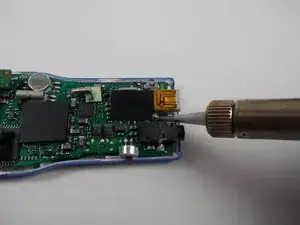

  9. YgqWuL2vlsEcCZyO
    YgqWuL2vlsEcCZyO
    MYixUGxOyDIEOpIF
    3hNPNQ1R3yCvLIsO

    • Use the soldering iron to liquefy the solder connecting the USB Jack to the motherboard.

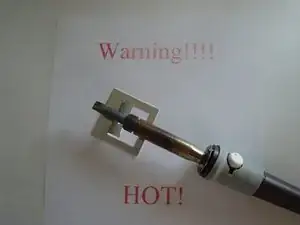

  10. tY2JfAhoOUqBhWNe

    • The solder and soldering iron will be very hot at this time. Do not touch unless wearing protective gloves as you will be burnt.

    • Be sure to always elevate the hot end of the soldering iron on a metal stand to prevent incidental burns.

  11. scv3DG1EcCyDAqdB

    • Remove faulty USB jack from motherboard.

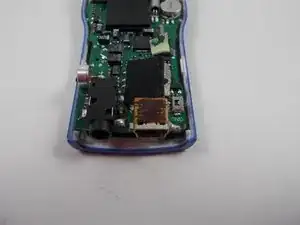

  12. HR4xntxN1ESXSaAI

    • Replace faulty USB jack with a new one.

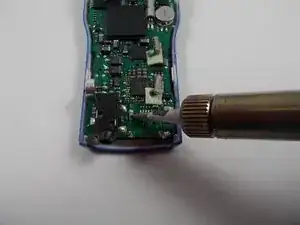

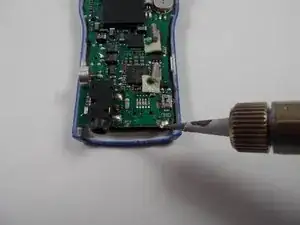

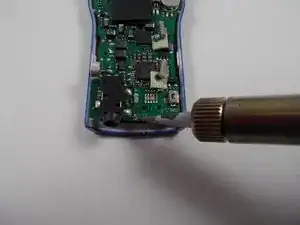

  13. 54DrCNRYbeFZmIiV
    54DrCNRYbeFZmIiV
    3KDomKeygaO1RdXr
    UWa6t4g4VCrrZCOs

    • There may be some solder in the way of the USB jack's metal contacts. If this occurs simply melt the solder to create room for the contacts.

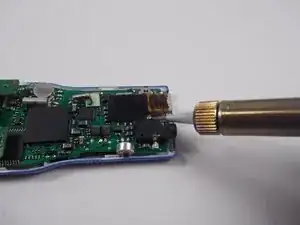

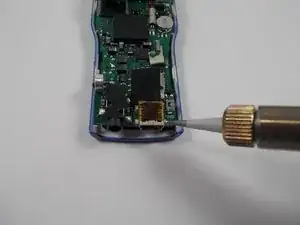

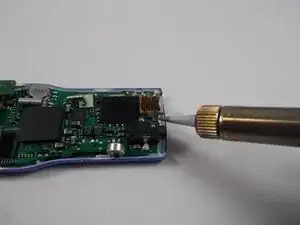

  14. HK1pcLeGTcvZRolf
    HK1pcLeGTcvZRolf
    GtkBv4GmA2JKa51N
    5FJayVFXvJaEfSUO

    • With the new USB jack in place, use the soldering iron and solder to create a stable connection between the motherboard and USB jack.

    • Be sure to allow the new solder to cool and harden.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

James Thorne

Mitglied seit: 05/11/13

638 Reputation

Ein Kommentar

Wearing gloves with a soldering iron? If you need gloves you're grabbing the wrong end... Any one who cant figure out which end is the hot one, and need to be reminded to keep the hot end off of ...anything... including skin, probably shouldnt be attempting this level of repair...

Also, no cleaning the cut off bits of the old connector? They're plainly visible in one of the photos, yet the data pins dont seem to be mentioned at all in the write-up. In fact, the only points you illustrate to touch with the iron are the stabilization tabs, not the actual data/power pins.

The better way to prepare the PCB for a new connector would be to use solder wick to clean the pads, then tin the pads on the PCB with a little glop of solder on each, the same on the connector going in so that all one has to do is hit one of the support tabs to afix it in place, make sure the data pins are aligned, tap each pin with the iron to quickly liquefy the solder fixing them in place, then finish up with the other two support tabs.
