Einleitung
After removing the screen protector, the actual LCD screen of the device can now be removed. This will involve disconnecting various ribbons and cables from the device.
Werkzeuge
-
-

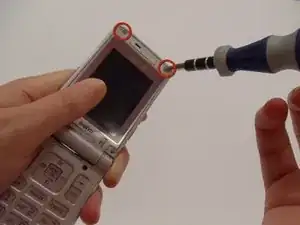

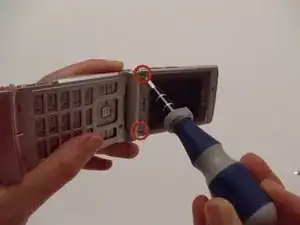

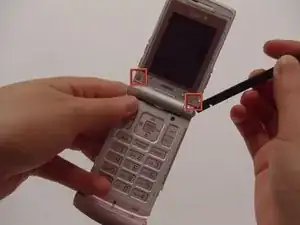

With the flat end of a spudger, remove the plastic covers located on the corners of the display near the hinge and above the screen, revealing four screws underneath.
-
-
-

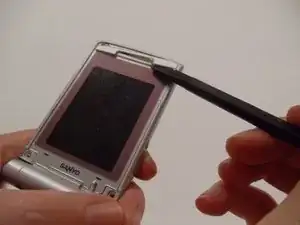

Carefully pry the screen protector off the phone using the flat end of the spudger.
-
Once free from the adhesive, pull the screen protector away from the phone.
-
-
-
Use the spudger to pry off the front case from the left and right sides of the device.
-

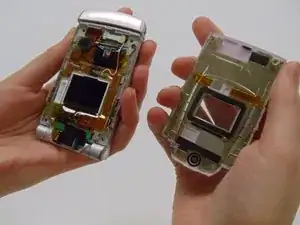

Once it has popped off, pull the casing apart with fingers.
-
-
-

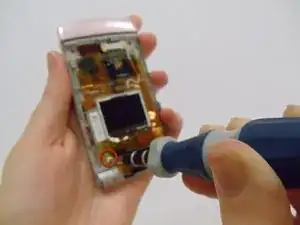

Using a Tri-wing Y0 screwdriver, remove the 4.4mm screw.
-

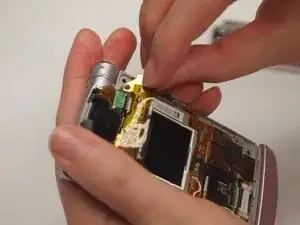

Use fingers to remove the strip from the device.
-
-
-

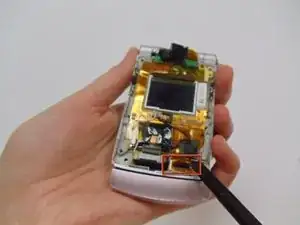

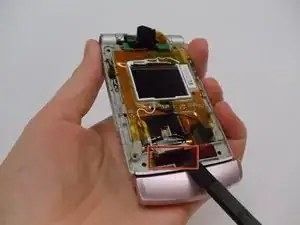

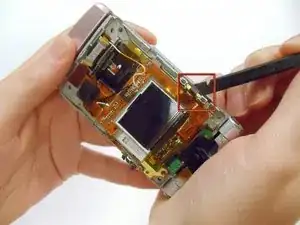

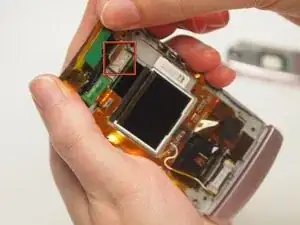

Use a spudger to detach all of the connections to the motherboard in the back of the phone by the screen.
-
-
-

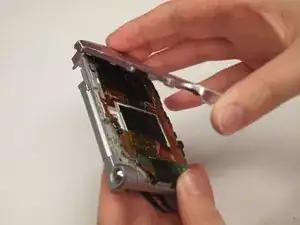

Use the flat edge of the spudger to detach the screen from the phone casing.
-
Pull the screen up and away from the case.
-
To reassemble your device, follow these instructions in reverse order.
