Sanyo SCP-8100 Keypad Replacement

Geschrieben von: Irenz Afable
  • Kommentare: 0
Sanyo SCP-8100 Keypad Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

30 - 45 Minuten

Einleitung

In order to replace the keypad, you will need to unscrew and pry the back panel off of the phone. The keypad is located underneath the motherboard.

  • Note: In order to pull out the plug on the back of the phone that is hiding one of the screw, you will need to use a push pin. A spudger or opening tool are too thick to take it out.

  1. S5vfFsEA62G3AfiK
    S5vfFsEA62G3AfiK
    UYUarMiSkXbSYPOd
    4K52Z5EiIChXgiDU

    • Push and hold the button on the back toward the direction of the arrow to unlock the battery.

    • Lift and remove the battery from the back of the phone.

  2. J2etGTqBQcsXGitr
    J2etGTqBQcsXGitr
    Jw4Y4NPKa3vc3cit

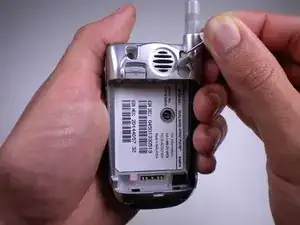

    • Using a push pin, pull out the plug on the back, located under the antenna.

    • You may try to use a spudger or opening tool, however, you may damage the plug because those tools are too thick.

  3. QYCArKflBFWA2XNk

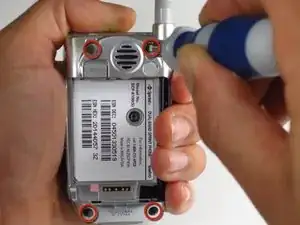

    • Unscrew the four 6mm long screws with a Tri-Wing Y1 screwdriver.

  4. UT4dxrr3MRRfqJv3
    UT4dxrr3MRRfqJv3
    FNG63gitrN1URoA3

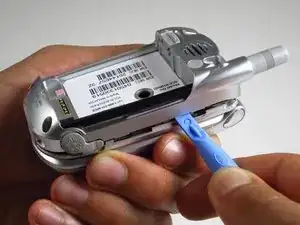

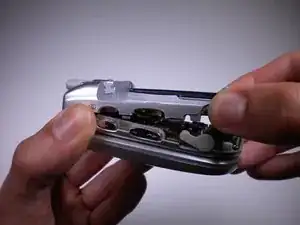

    • Use a plastic opening tool to pry the back panel along the edges.

    • You may need to apply some force when prying.

  5. 5ECytCrnMm6xkQcY
    5ECytCrnMm6xkQcY
    iOWLPQQcmElKeTj5
    K6ugjb5TtRqBsZGD

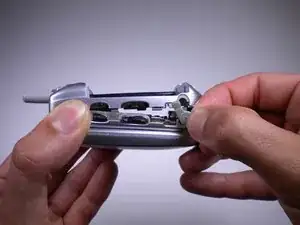

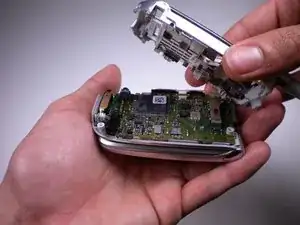

    • While removing the back panel, take out the rubber cover on each side.

  6. pdbgWs1FUcgQQccv
    pdbgWs1FUcgQQccv
    LPr6SIAJhyHsBhIm

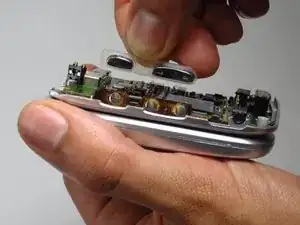

    • Pull the volume and camera buttons off from the side of the phone.

  7. hXIwSIdBMD2Oeym2
    hXIwSIdBMD2Oeym2
    oerWlKC61HdAysiY

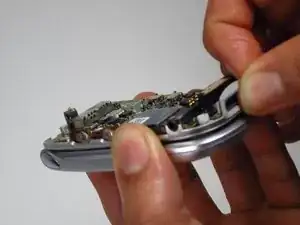

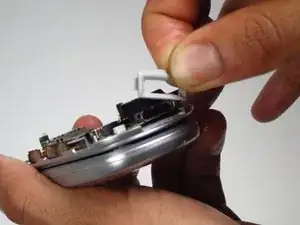

    • Pull the gray frame covering the charging port from the bottom of the phone.

  8. M5yLhdx6OVcRPgaU
    M5yLhdx6OVcRPgaU
    1iIDdA2GnJIXXGDY

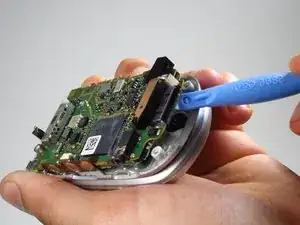

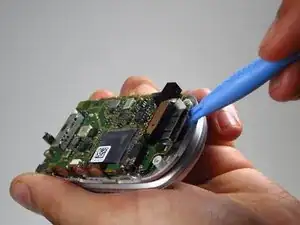

    • Use the opening tool to lift the motherboard up from the phone.

    • Be careful and pry the motherboard off slowly. The motherboard will be attached to the phone at the top by a metal ribbon.

  9. dIFf4wkiTpFIyGGE
    dIFf4wkiTpFIyGGE
    AKDnfS64fbRsnRQF
    KEEJX3G6TcJRAkIG

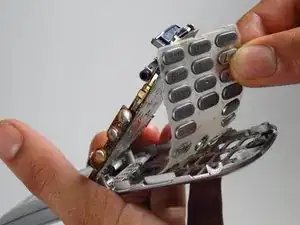

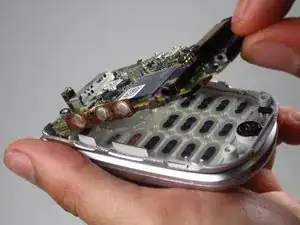

    • Flip open the phone, exposing the keypad.

    • Use the opening tool to push the buttons from the bottom to lift the rubber keypad up.

    • Pull the keypad out of the phone.

Abschluss

To reassemble your device, follow these instructions in reverse order.
