Sanyo VPC-T850 LCD Display Replacement

Geschrieben von: Devin Farnsworth
  • Kommentare: 2
Sanyo VPC-T850 LCD Display Replacement

Schwierigkeitsgrad

Moderate

Schritte

12

Zeitaufwand

20 Minuten

Einleitung

This guide will come in very handy for other repairs on your camera because of the number of prerequisites required.

  1. WpHcgKmpvu6ioD4y

    • Make sure the camera is powered off by pressing and holding the small, square button embedded in the top rim of the camera.

    jai le meme mais je n artive plus a l allumer et le viseur ne rentre plus comment je dois faire pour l allumer la bayerie ne reste pas fixe pouvez vous m aider en francais merci

    nadine Guchez -

    Bjr j aie le meme appareil photo sanyo 8i vpc-T850*megapixel je n arrive plus a l alummer et la naterie est charger a 100pourcents et elle ne reste pas fix pouvez vous m aider en ftancaismerci

    nadine Guchez -

  2. GESsPv1ytqrtngYr

    • Locate the hatch found on the bottom of the camera.

    • Open the hatch by gripping the small notch and sliding it outwards.

  3. njC5v3Pm32ZdBPK1

    • Push the small, plastic arm out of the way to free the battery.

    • The battery is spring loaded and will pop out slightly when the arm is moved.

  4. KPDcFFgy2XZuMfco

    • Pull the battery out of the camera and close the hatch.

    • To reinsert, there is a triangle on the battery indicating which direction to slide it in.

  5. AWuVEBXaNXrFDQdl
    AWuVEBXaNXrFDQdl
    ojCEC2UrwOyJrtsG
    NTyXTb5qjGxtSTCr

    • Using your Phillips #000 Screwdriver, remove the eight screws located around the sides and bottom of the camera.

    • Be sure to keep track of the side each screw comes from, as they come in different lengths.

  6. ZiXufWHxijMGNSuC
    ZiXufWHxijMGNSuC
    NXgT3mVemMOULQm1

    • Orient the camera so the display is facing up.

    • Gently pull off the rear panel surrounding the display.

    • There are still three green wires connecting the panel to the rest of the camera.

    • Use your prying tool if you have difficulties removing the panel by hand.

  7. JmINOb63qJGMRTCD

    • Remove the eight black screws connecting the keypad circuit board to the rear panel.

  8. NsV2tx3Q2JAHcn4L
    NsV2tx3Q2JAHcn4L
    UntpknbGsNvhjIlX

    • With a plastic opening tool, gently remove the chrome framing on the left and right sides of the camera.

  9. OGSVkFQV3aRBn3it

    • Flip the camera over so the lens is facing up.

    • Gently lift up the front panel to remove it from the rest of the camera.

    • Use your plastic opening tool if you have difficulties removing the panel by hand.

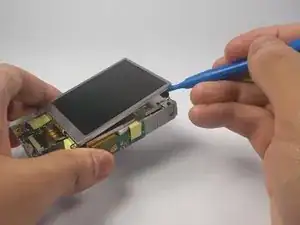

  10. ZrJ6GWBROTWw6EYp

    • Flip the device over to where the display is located.

    • Using your plastic opening tool, lift the display out of its metal housing.

  11. tyOHnbZTCBStWtrN

    • Locate the orange ribbon connecting the display to the camera.

    • Using your plastic opening tool, gently lift the black bar holding the orange ribbon to the camera.

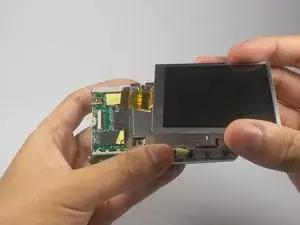

  12. TesqccmDuNxIjqLk

    • With two fingers held firmly on the display, gently pull the orange ribbon out of the camera.

    • Pull slowly to avoid severing the orange ribbon from the display.

Abschluss

To reassemble your device, follow these instructions in reverse order.
